1SCA108605R1001 - OT250E04CLP CHANGE-OVER SWITCH

1SCA108605R1001 - OT250E04CLP CHANGE-OVER SWITCH

by ABB
$796.27 - $796.27
$796.27
$796.27 - $796.27
$796.27

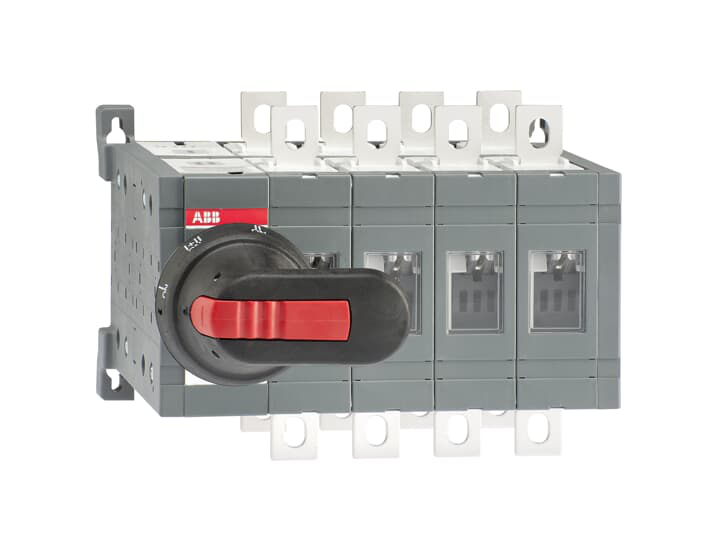

250, 4 pole manual change-over switch operating on closed transition principle. i.e. make-before-break operation without OFF-position. Between positions I and II, there is a position I+II where both switches are closed simultaneously. The overlapping time when both contacts are closed is minimum 20 ms. Operating angle of the handle is 90°. Including a black plastic IP65 I - I+II - II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Environmental Information 1SCC303050D0201
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 205 mm8.07 in
Product Net Height 150 mm5.91 in
Product Net Depth / Length 160 mm6.3 in
Product Net Weight 3.8 kg8.38 lb

Technical
Item Value
Rated Operational Current AC-21A (Ie) (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
Rated Operational Current AC-31B (Ie) (380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie) (380 ... 415 V) 250 A
Rated Operational Power AC-23A (Pe) (380 ... 415 V) 140 kW(500 V) 170 kW(690 V) 250 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 250 A
Conventional Thermal Current (Ithe) Fully Enclosed 250 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 1000 V
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 8 kiloampere rms
Power Loss 6.5 W
Pollution Degree 3
Handle Color Black
Handle Type Handle and shaft included
Fourth Pole Position Right Side
Fourth Pole Type Switched - Simultaneous Function
Switches Operating Mechanism Mechanism at the End of the Switch04 (Left Side)
Distance Between Phases Standard
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Operating Mode Front operated
Mounting Type Base mounting
Number of Poles 4
Degree of Protection Front IP20
Transition Type Closed

Technical UL/CSA
Item Value
Ampere Rating 250 A

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information 1SCC303050D0201

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC000216 - Switch disconnector (low voltage)
eClass V11.1 : 27371403
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland) 3641615
