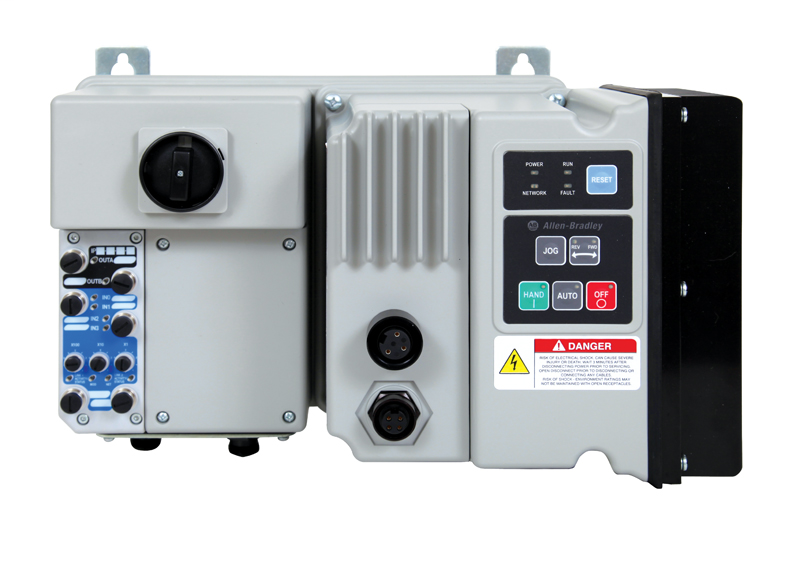

284E-FVD7P6Z-25-RR-3-SB-EMI - 284E-FVD7P6Z-25-RR-3-SB-EMI - 284D/284E ArmorStart Distributed Motor Controller

284E-FVD7P6Z-25-RR-3-SB-EMI - 284E-FVD7P6Z-25-RR-3-SB-EMI - 284D/284E ArmorStart Distributed Motor Controller

by Rockwell Automation
$6,584.48 - $6,584.48
$6,584.48
$6,584.48 - $6,584.48
$6,584.48

Bulletin 284 ArmorStart W/ Variable Frequency AC DriveEtherNet/IP, 7.6A, 3.0kW, 5.0 Hp, 25 A Rated Device, ArmorConnect Power Media Connection with Motor Cable Supplied, Hand-Off-Auto Selector Keypad with Jog Function, Source Brake Contactor with Motor Cable , EMI Filter



Specifications
Item Value
Control EtherNet/IP
Enclosure NEMA Type 4 Watertight Enclosure - IP 67
Type Sensorless Vector Control and Volts per Hertz
kW 3 kW
Hp 5 Hp
Relay Contact 24V DC
Short Circuit Protection 25 A Rated Device
Connection ArmorConnect Power Media Connection with Motor Cable Supplied

Module Data
Item Value
Communications EtherNet/IP
Enclosure Type NEMA Type 4 Watertight Enclosure - IP 67
Torque Performance Mode Sensorless Vector Control and Volts per Hertz
Input Voltage 380...480V 50/60 Hz 3-Phase
Output Current 7.6A, 3.0kW, 5.0 Hp
Control Voltage 24V DC
Line/Motor Connections ArmorConnect Power Media Connection with Motor Cable Supplied

Options Data
Item Value
Option 1 - Hand-Off-Auto Hand-Off-Auto Selector Keypad with Jog Function
Option 2 M25 Source Brake Contactor Connector
Option 3 EMI Filter

Repair Parts List
Specifications Sheet
Dimension Sheet (DXF)
External Connections and OL Curves
