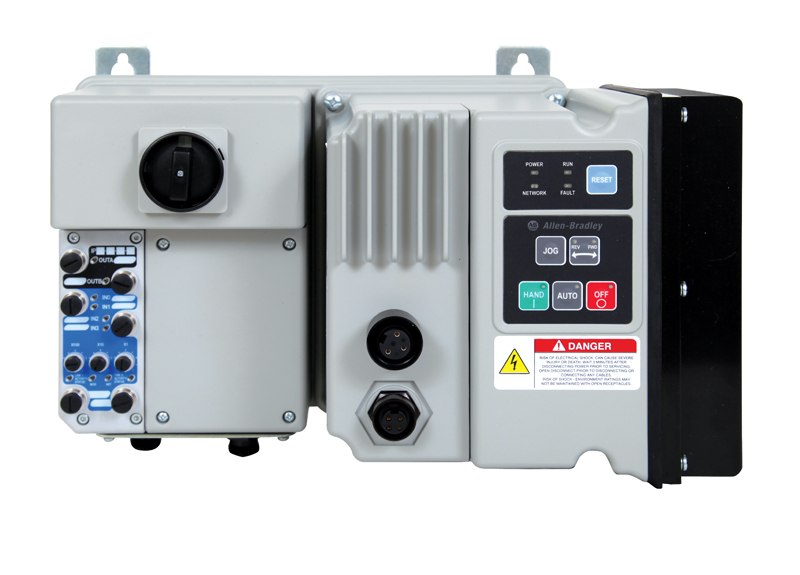

284E-FVD2P3Z-10-RRW-3-DBW-EMI - 284E-FVD2P3Z-10-RRW-3-DBW-EMI - 284D/284E ArmorStart Distributed Motor Controller

284E-FVD2P3Z-10-RRW-3-DBW-EMI - 284E-FVD2P3Z-10-RRW-3-DBW-EMI - 284D/284E ArmorStart Distributed Motor Controller

by Rockwell Automation
$5,253.09 - $5,253.09
$5,253.09
$5,253.09 - $5,253.09
$5,253.09

Bulletin 284 ArmorStart W/ Variable Frequency AC DriveEtherNet/IP, 2.3A, 0.75kW, 1.0 Hp, 10 A Rated Device, ArmorConnect Power Media Connection with NO Motor Cable Supplied, Hand-Off-Auto Selector Keypad with Jog Function, DB Brake Connector, No Cable , EMI Filter



Specifications
Item Value
Control EtherNet/IP
Enclosure NEMA Type 4 Watertight Enclosure - IP 67
Type Sensorless Vector Control and Volts per Hertz
kW 0.75 kW
Hp 1 Hp
Relay Contact 24V DC
Short Circuit Protection 10 A Rated Device
Connection ArmorConnect Power Media Connection with NO Motor Cable Supplied

Module Data
Item Value
Communications EtherNet/IP
Enclosure Type NEMA Type 4 Watertight Enclosure - IP 67
Torque Performance Mode Sensorless Vector Control and Volts per Hertz
Input Voltage 380...480V 50/60 Hz 3-Phase
Output Current 2.3A, 0.75kW, 1.0 Hp
Control Voltage 24V DC
Line/Motor Connections ArmorConnect Power Media Connection with NO Motor Cable Supplied

Options Data
Item Value
Option 1 - Hand-Off-Auto Hand-Off-Auto Selector Keypad with Jog Function
Option 2 DB Brake Connector, No Cable
Option 3 EMI Filter

Specifications Sheet
Dimension Sheet (DXF)
External Connections and OL Curves
Repair Parts List
