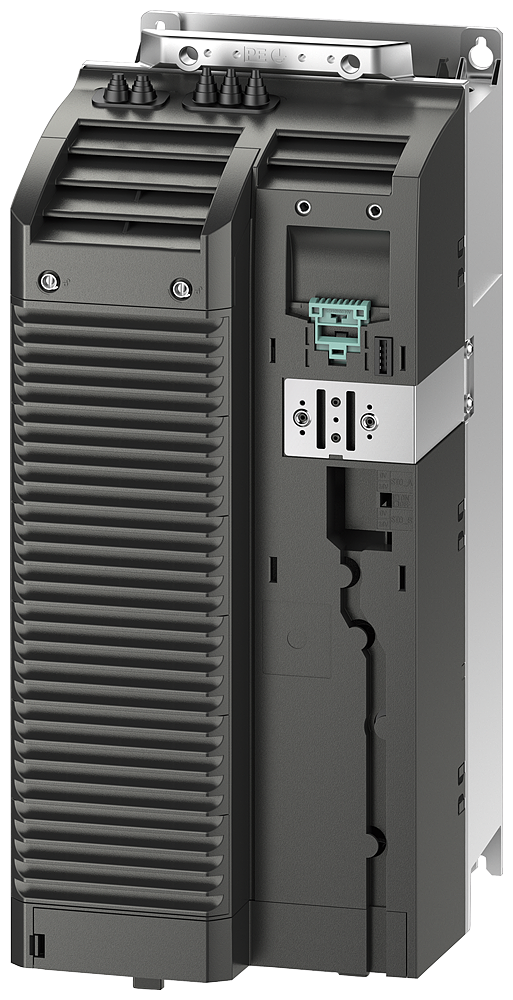

6SL32101RE275UL0 - SINAMICS PM240P-2 IP20-FSD-U-400V-37kW

6SL32101RE275UL0 - SINAMICS PM240P-2 IP20-FSD-U-400V-37kW

by Siemens
$4,914.78 - $4,914.78
$4,914.78
$4,914.78 - $4,914.78
$4,914.78

SINAMICS G120 POWER MODULE PM240P-2 UNFILTERED 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 30W FOR 150% 60S. 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 37W FOR 135% 3S.110% 57S.100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD). FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1



Specifications
Item Value
Depth 237 mm
Width 200 mm
Height 472 mm
Mains voltage 380 V
Number of phases input 3
Number of phases output 3
Max. output frequency 550 Hz
Type of converter U converter
Degree of protection (IP) IP20
Nominal output current I2N 75 A
4-quadrant operation possible false
Integrated breaking resistance false
Relative symmetric net voltage tolerance 10 %
Relative symmetric net frequency tolerance 5 %
Application in industrial area permitted false
Max. output at linear load at rated output voltage 30 kW
Max. output at quadratic load at rated output voltage 37 kW
Application in domestic- and commercial area permitted false
Country of Origin DE
