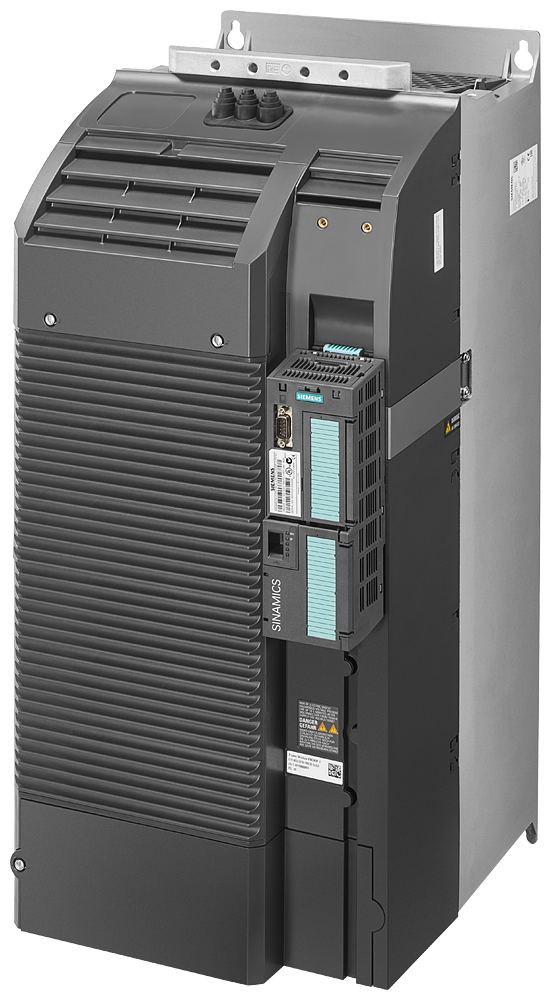

6SL32101RE318UL0 - SINAMICS PM240P-2 IP20-FSF-U-400V-90kW
by Siemens
Original price
$10,288.02
-
Original price
$10,288.02
Original price
$10,288.02
$10,288.02
-
$10,288.02
Current price
$10,288.02
SINAMICS G120 POWER MODULE PM240P-2 UNFILTERED 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 150% 60S. 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 90kW FOR 135% 3S.110% 57S.100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708x 305x 357 (HXWXD). FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1
Item | Value |
---|---|
Depth | 357 mm |
Width | 305 mm |
Height | 708 mm |
Mains voltage | 380 V |
Number of phases input | 3 |
Number of phases output | 3 |
Max. output frequency | 550 Hz |
Type of converter | U converter |
Degree of protection (IP) | IP20 |
Nominal output current I2N | 178 A |
4-quadrant operation possible | false |
Integrated breaking resistance | false |
Relative symmetric net frequency tolerance | 5 % |
Relative symmetric net voltage tolerance | -10 % |
Application in industrial area permitted | false |
Max. output at linear load at rated output voltage | 75 kW |
Max. output at quadratic load at rated output voltage | 90 kW |
Application in domestic- and commercial area permitted | false |
Country of Origin | DE |
