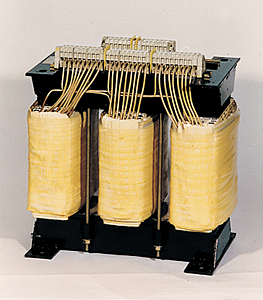

4AP2742-8BC40-0HA0 - 3-PH. SITAS-TRANSFORMER PRI Y 500-400 /

4AP2742-8BC40-0HA0 - 3-PH. SITAS-TRANSFORMER PRI Y 500-400 /

by Siemens
$2,254.88 - $2,254.88
$2,254.88
$2,254.88 - $2,254.88
$2,254.88

>ISOLATION TRANSFORMER< CIRCUIT TRANSFORMER< 61558-2-1, -2-2, -2-4 >CONTROL INSTALLATION:SCREW; EN CONNECTION; TERMINALS:SCREW/TAB TA/ISOKL:40 /B; IP00; TYPE OF GR./SHIELD WNG.:IIIIII0 /0; F(HZ):50...60; VECTOR ISEC(A):3,6-6,26; USEC(V):Y 400 / D 230; UPRI(V):Y500-400/D289-230; PN/PN(S6)(KVA):2,5 /11; TRANSFORMER SITAS; PHASES:3;



Specifications
Item Value
Depth 242 millimetre
Country of Origin CZ
Width 264 millimetre
Height 242 millimetre
Protection type IP IP00
max. primary voltage 1 500 volt
max. primary voltage 2 400 volt
max. primary voltage 3 289 volt
max. primary voltage 4 230 volt
min. primary voltage 1 500 volt
min. primary voltage 2 400 volt
min. primary voltage 3 289 volt
min. primary voltage 4 230 volt
max. secondary voltage 1 400 volt
max. secondary voltage 2 230 volt
min. secondary voltage 1 400 volt
min. secondary voltage 2 230 volt
Rated performance 2500 volt ampere
designed as safety transformer false
designed as isolating transformer false
designed as compensator transformer false
Insulation Material Class acc. to IEC 85 B
relative short-circuit voltage 3.89 percent
