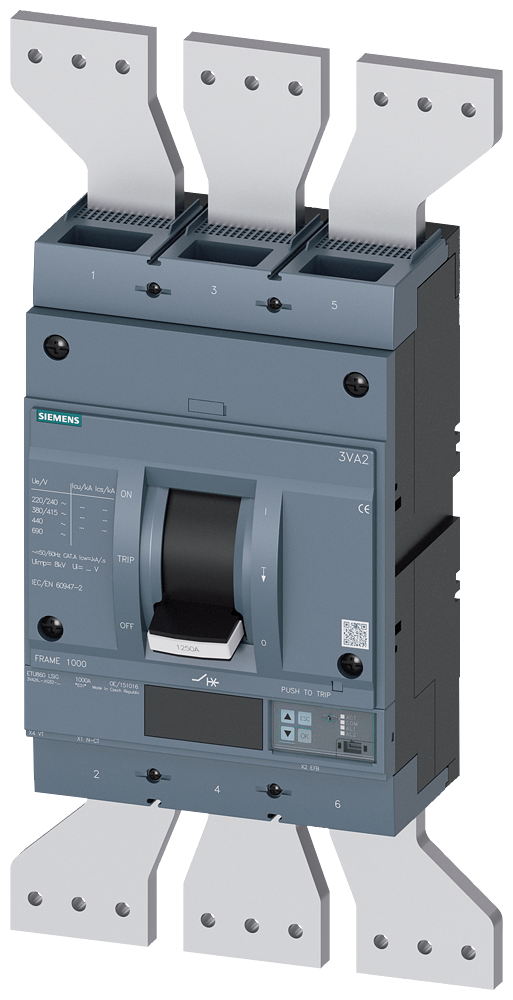

3VA2612-5KQ32-0AA0 - BRKR 3VA26 3P 1250A 55KA ETU8-LSIG NUT

by Siemens
Original price $3,446.24 - Original price $3,446.24
Original price
$3,446.24
$3,446.24 - $3,446.24
Current price $3,446.24

3F 3P 1250A 0,5% UTAP



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional false
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 1250 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 500 A
Integrated earth fault protection true
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Number of auxiliary contacts as change-over contact 0
Adjustment range undelayed short-circuit release 1875 A
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Adjustment range short-term delayed short-circuit release 750 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55 kA
