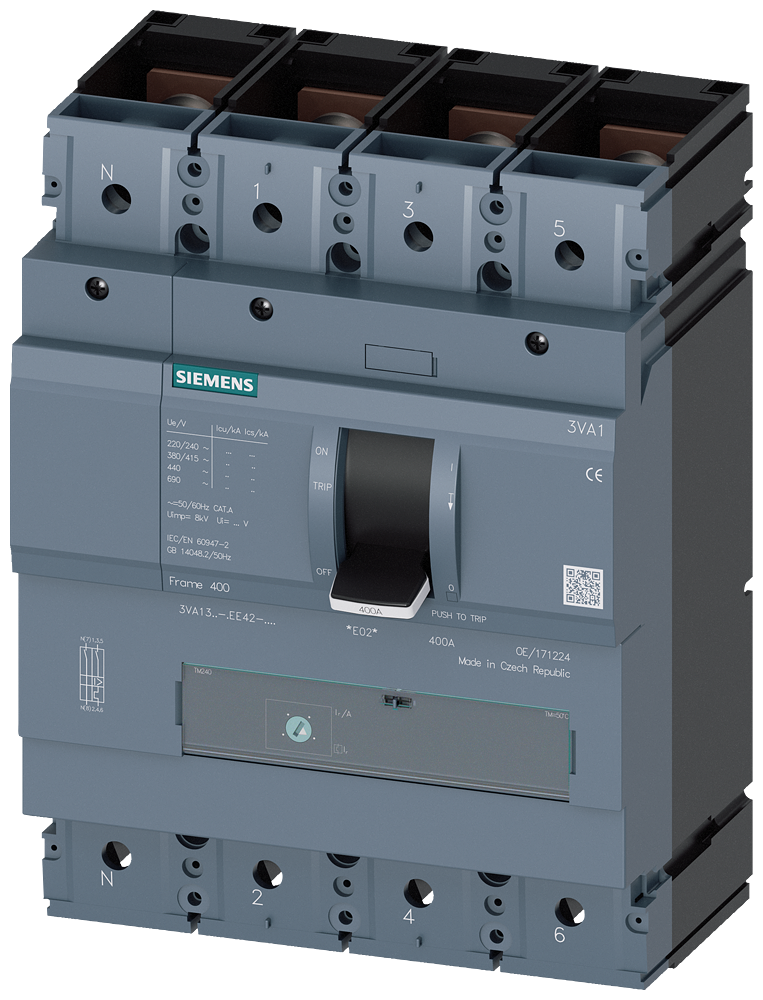

3VA1332-5EE42-0AA0 - BRKR 3VA13 4P 0 55KA ATFM NUT
by Siemens
Original price
$1,083.14
-
Original price
$1,083.14
Original price
$1,083.14
$1,083.14
-
$1,083.14
Current price
$1,083.14
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA13 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 0A 4-POLE Icu: (6KAIC AT 600V) (55KAIC AT 415V). TM220 TRIP UNIT WITH ADJUSTABLE Ir FIXED Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 7.2 x 9.8 x 5.4.
Item | Value |
---|---|
Pole number | 4 |
Country of Origin | CZ |
Protection type IP | IP40 |
Motor drive optional | true |
Integrated motor drive | false |
Design of actuating element | Tilt lever |
Number of auxiliary contacts as opener | 0 |
Number of auxiliary contacts as changer | 0 |
Number of auxiliary contacts as shutter | 0 |
integrated earth-fault protection present | false |
Power loss per pole, current-dependent [PlIp] | 26.7 watt |
Position of the connection for the main circuit | Front connection |
Greatest value of tuning range short circuit tripper, undelayed | 3200 ampere |
Lowest value of setting range for short circuit tripper, undelayed | 3200 ampere |
