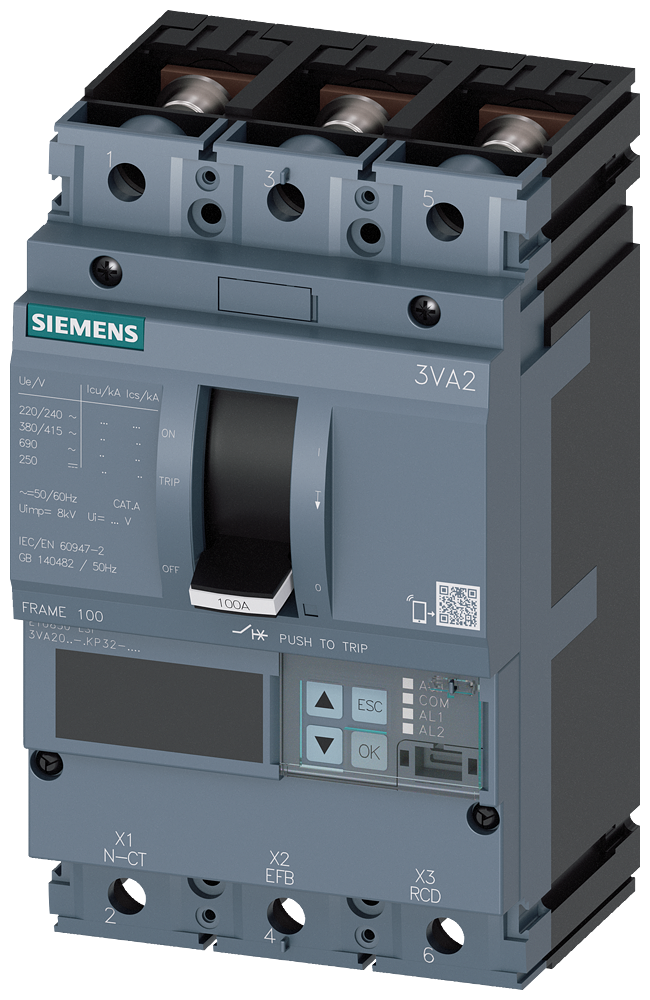

3VA2040-7KP32-0AA0 - BRKR 3VA20 3P 40A 110KA ETU8-LSI NUT
by Siemens
Original price
$857.79
-
Original price
$857.79
Original price
$857.79
$857.79
-
$857.79
Current price
$857.79
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA20 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 40A 3-POLE Icu: (2KAIC AT 690V) (110KAIC AT 415V). ETU850 TRIP UNIT LCD LSI WITH METERING. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 4.1 x 7.1 x 4.2.
Item | Value |
---|---|
Country of Origin | CZ |
Number of poles | 3 |
Rated voltage | 690 V |
Motor drive optional | true |
Motor drive integrated | false |
Degree of protection (IP) | IP40 |
Rated permanent current Iu | 40 A |
With switched-off indicator | false |
Overload release current setting | 16 A |
Type of control element | Rocker lever |
Integrated earth fault protection | false |
Complete device with protection unit | true |
With integrated under voltage release | false |
DIN rail (top hat rail) mounting optional | true |
Suitable for DIN rail (top hat rail) mounting | true |
Adjustment range undelayed short-circuit release | 60 A |
Number of auxiliary contacts as change-over contact | 0 |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Position of connection for main current circuit | Front side |
Device construction | Built-in device fixed built-in technique |
Adjustment range short-term delayed short-circuit release | 24 A |
Type of electrical connection of main circuit | Screw connection |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 110 kA |
