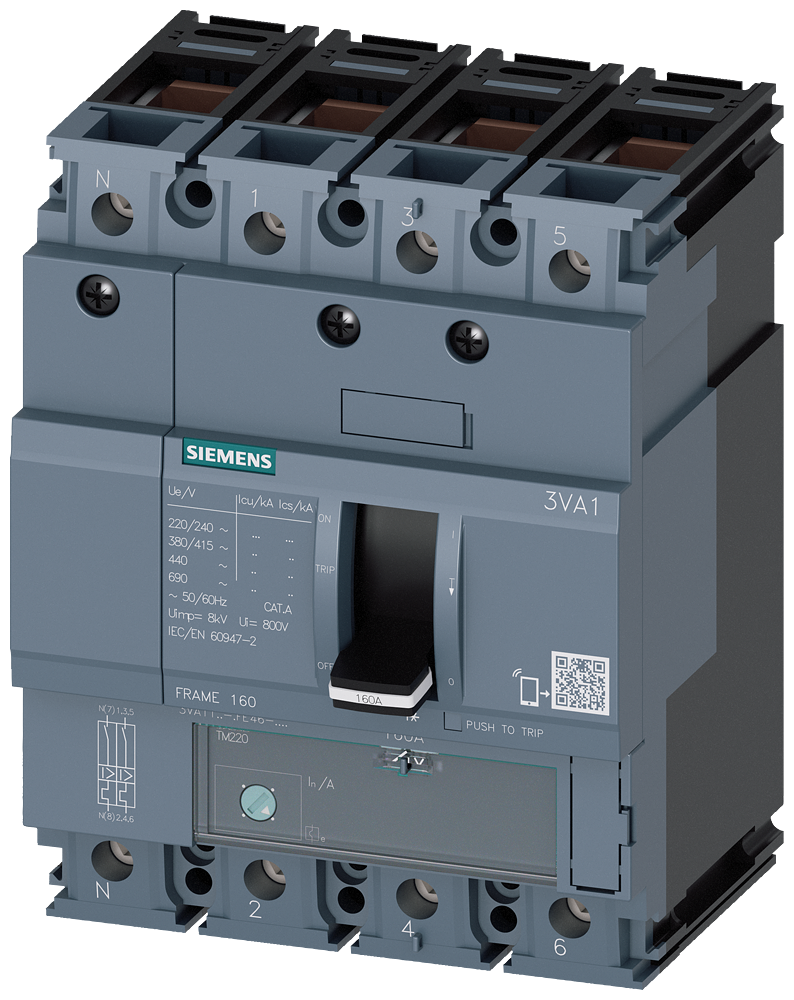

3VA1116-6GE46-0AA0 - BRKR 3VA11 4P 160A 70KA ATFM100NTRL BOX

by Siemens
Original price $583.98 - Original price $583.98
Original price
$583.98
$583.98 - $583.98
Current price $583.98

SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA11 FRAME WITH HIGH (CLASS H) BREAKING CAPACITY. 160A 4-POLE Icu: (10KAIC AT 690V) (70KAIC AT 415V). TM220 TRIP UNIT WITH ADJUSTABLE Ir FIXED Ii 100PCT NEUTRAL PROTECTION. SPECIAL FEATURES: CONNECTION WITH BOX TERMINAL / STEEL WRAP AROUND LUG. DIMENSIONS (W x H x D) IN: 4 x 5.1 x 3.5.



Specifications
Item Value
Number of poles 4
Country of Origin CZ
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 160 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 112 A
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Number of auxiliary contacts as change-over contact 0
Adjustment range undelayed short-circuit release 1600 A
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Type of electrical connection of main circuit Frame clamp
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 70 kA
