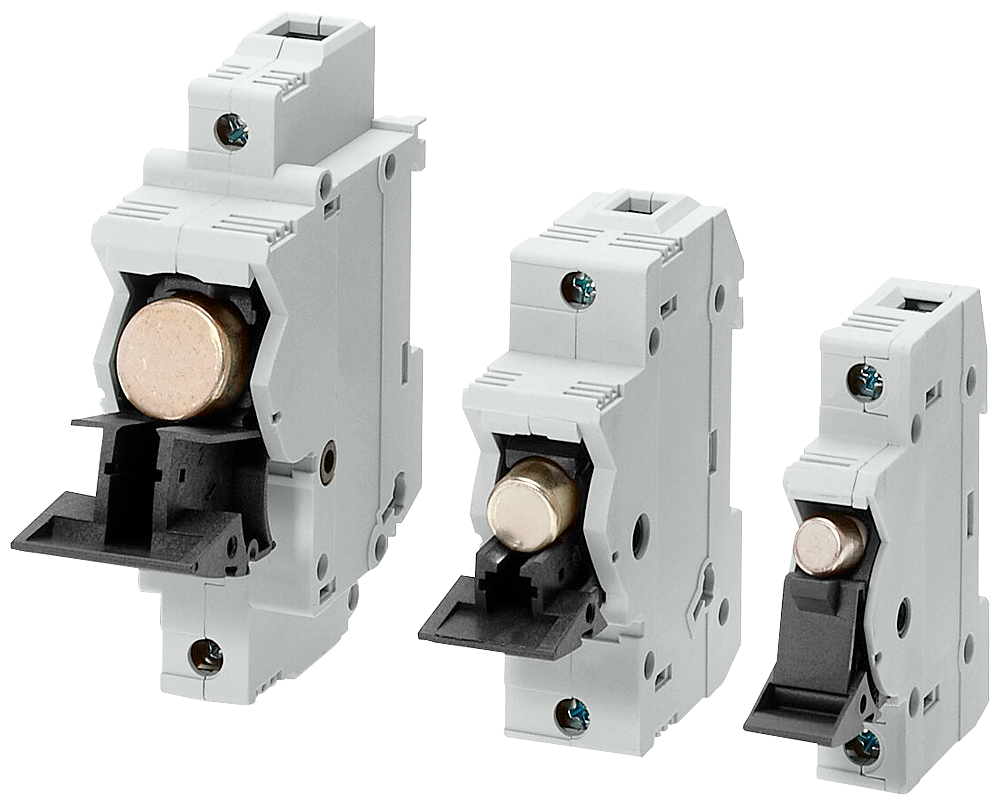

3NC2292 - FUSE DISCONNECT, SITOR, 22X58, 100A, 690VAC

by Siemens
Original price $94.83 - Original price $94.83
Original price
$94.83
$94.83 - $94.83
Current price $94.83

SITOR FUSE DISCONNECTOR 22X58, UP TO 100 A, 690 V AC (887621857189)



Specifications
Item Value
Country of Origin DE
Cable entry Other
Number of poles 2
Suitable for fuses Other
Motor drive optional false
With error protection false
Motor drive integrated false
Version as main switch false
Type of control element Other
Version as safety switch true
Equipped with connectors false
Rated permanent current Iu 100 A
Suitable for busbar mounting false
Suitable for ground mounting false
Position control element Front side
Max. rated operation voltage Ue AC 690 V
Suitable for front mounting 4-hole true
Degree of protection (IP), front side IP20
Version as emergency stop installation false
Conditioned rated short-circuit current Iq 100 kA
Type of electrical connection of main circuit Screw connection
