847H-DN2D-RP00120 - 847H-DN2D-RP00120 - 847 Incremental Encoders

Original price $1,354.86 - Original price $1,354.86
Original price
$1,354.86
$1,354.86 - $1,354.86
Current price $1,354.86

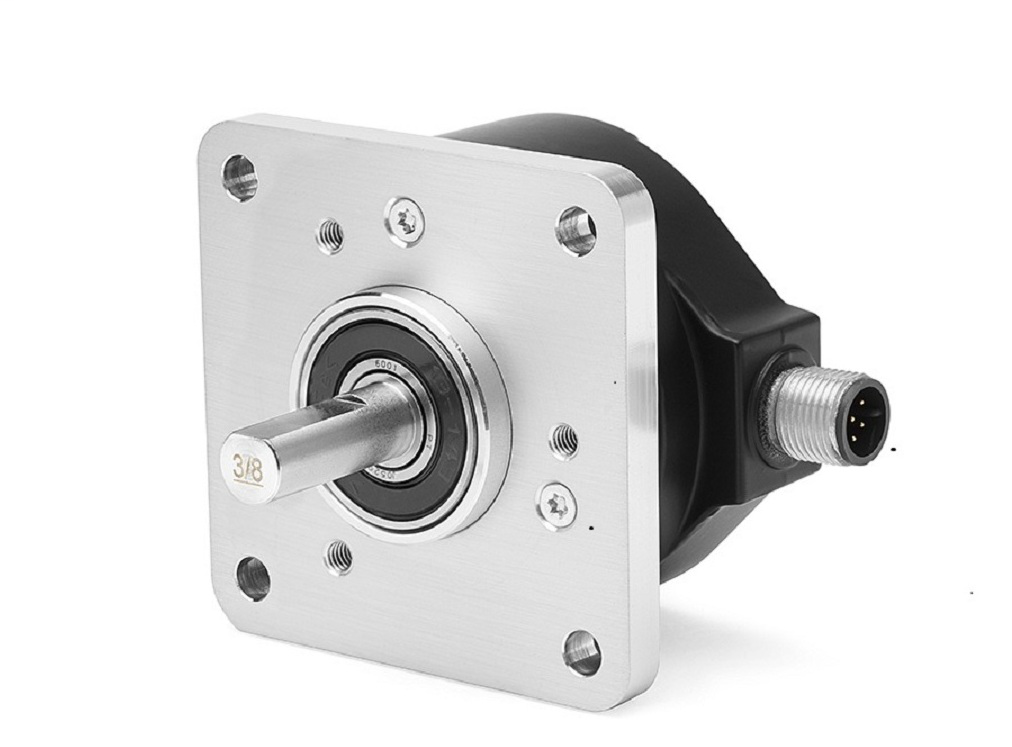

Incremental Encoder , Standard Square Flange , 3/8 inch Diameter Shaft with Flat , 8-30 Volt Open Collector (B-Leads-A, CW, Z gated with BN) , 1.5m (4.92 ft) Cable, 120 Pulses per Revolution.



Specifications
Item Value
Resolution (Pulses per Revolution) 120

Encoder Data
Item Value
Encoder Diameter/Type 2.5 inch Diameter, Solid Shaft
Mounting Configuration Standard Square Flange
Shaft Size 3/8 inch Diameter Shaft with Flat
Power Supply 8-30 Volt DC
Output Configuration 8-30 Volt Open Collector (B-Leads-A, CW, Z gated with BN)
Exit Type Radial Exit
Connector Cable Type 1.5m (4.92 ft) Cable

3-Dimensional STEP model (STP),Installation Instructions
