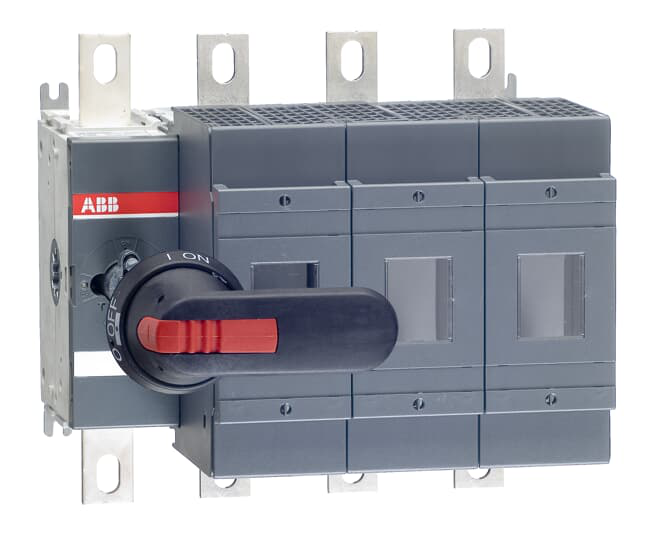

1SCA022753R9320 - OS400D03N3P SWITCH FUSE

1SCA022753R9320 - OS400D03N3P SWITCH FUSE

by ABB
$905.25 - $905.25
$905.25
$905.25 - $905.25
$905.25

Switch Fuses,Front Operated,4-pole,03 (Left Side),DIN,0,1,2,Handle and shaft included,Detachable Neutral Link Integrated Into the Mechanism



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 255 mm
Product Net Height 230 mm
Product Net Depth / Length 193 mm
Product Net Weight 7.1 kg15.65 lb

Technical
Item Value
Rated Operational Current AC-21A (Ie) (500 V) 400 A(690 V) 400 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 132 kW(400 V) 220 kW(415 V) 230 kW(500 V) 280 kW(690 V) 400 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 400 A
Conventional Thermal Current (Ithe) Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 14 kiloampere rms
Rated Conditional Short-Circuit Current (Inc) (690 V) 80 kA
Power Loss at Rated Operating Conditions per Pole 45 W
Pollution Degree 3
Handle Type Pistol handle and shaft included
Fourth Pole Type Detachable Neutral Link Integrated Into the Mechanism
Switches Operating Mechanism 03 (Left Side)
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Fuse Size NH0NH1NH2
Fuse System DIN
Operating Mode Front Operated
Standards IEC 60947-3
Special Functions Detachable Neutral
Mounting Type Base mounting
Number of Poles 3
Terminal Type Lug terminals
Terminal Width 25 mm
Tightening Torque 30 ... 44 N·m
Rated Current (In) Main Circuit 400 A

Technical UL/CSA
Item Value
Tightening Torque 30 ... 44 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC001040 - Fuse switch disconnector
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
