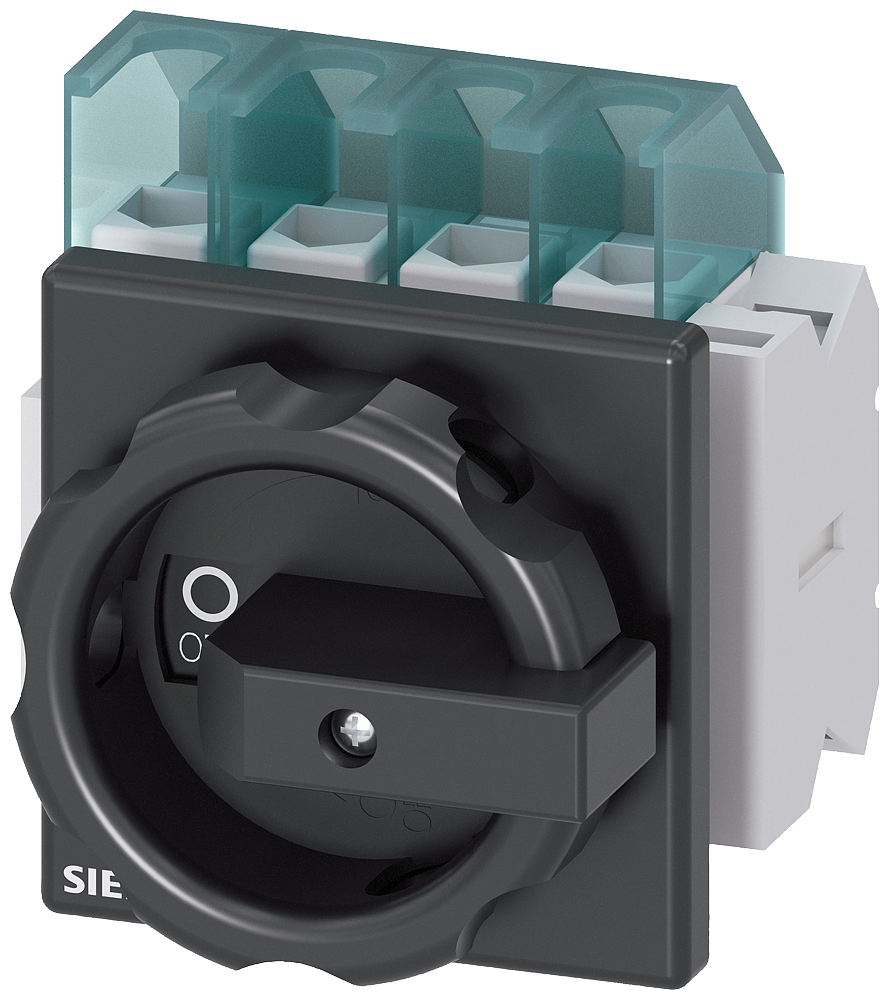

3LD2103-2EP51 - DISC SW 25A ROT HDL 4HOLE BLK 4P AUX

by Siemens
Original price $51.55 - Original price $51.55
Original price
$51.55
$51.55 - $51.55
Current price $51.55

MAIN CONTROL SWITCH 4-POLE IU=25, P/AC-23A AT 400V=9,5KW 1NO+1 NC, FRONT MOUNTING FOUR-HOLE MOUNTING ROTARY ACTUATOR BLACK



Specifications
Item Value
Number of poles 4
Country of Origin DE
Interlockable true
Number of switches 1
Motor drive optional false
Version as main switch true
Colour control element Black
Motor drive integrated false
Version as safety switch true
Voltage release optional false
Rated permanent current Iu 25.0 A
Degree of protection (NEMA) Other
Version as reversing switch false
Suitable for ground mounting false
Max. rated operation voltage Ue AC 690 V
Suitable for front mounting 4-hole true
Rated operation power at AC-3, 400 V 8 kW
Suitable for front mounting centre false
Type of control element Short thumb-grip
Degree of protection (IP), front side IP65
Rated operation power at AC-23, 400 V 10 kW
Rated permanent current at AC-21, 400 V 25 A
Rated permanent current at AC-23, 400 V 20 A
Version as maintenance-/service switch true
Version as emergency stop installation false
Rated short-time withstand current lcw 0.64 kA
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 1
Number of auxiliary contacts as normally closed contact 1
Type of electrical connection of main circuit Frame clamp
Device construction Built-in device fixed built-in technique
