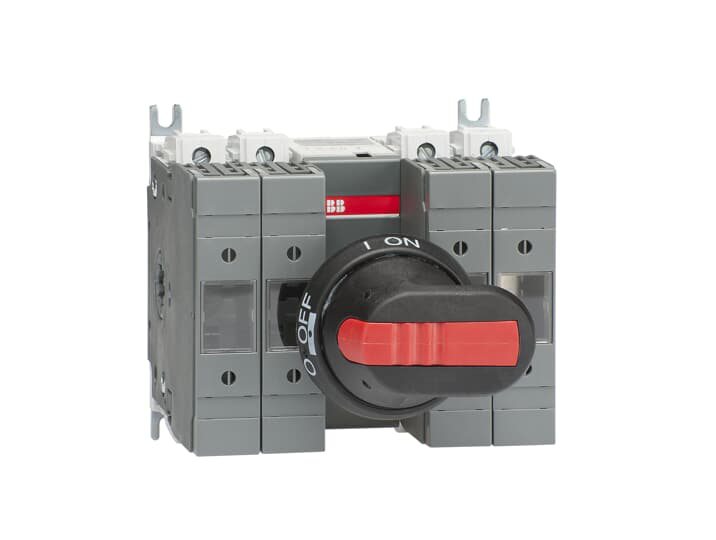

1SCA115230R1001 - OS63GD22N2P SWITCH FUSE
by ABB
Original price
$245.99
-
Original price
$245.99
Original price
$245.99
$245.99
-
$245.99
Current price
$245.99
Switch Fuses,Front Operated,4-pole,22 (Between the Poles),DIN,000,Handle and shaft included,Switched - With Solid Link
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
REACH Declaration | 1SCC011021D0201 |
RoHS Information | 1SCC011020D0201 |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85365080 |
Country of Origin | Finland (FI) |
Item | Value |
---|---|
Product Net Width | 136 mm |
Product Net Height | 125 mm |
Product Net Depth / Length | 121 mm |
Product Net Weight | 1.37 kg3.02 lb |
Item | Value |
---|---|
Rated Operational Current AC-21A (Ie) | (500 V) 63 A(690 V) 63 A |
Rated Operational Current AC-22A (Ie) | (500 V) 63 A(690 V) 63 A |
Rated Operational Current AC-23A (Ie) | (500 V) 63 A(690 V) 63 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW(400 V) 30 kW(415 V) 30 kW(500 V) 37 kW(690 V) 55 kW |
Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | Main Circuit 690 V AC |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
Power Loss | at Rated Operating Conditions per Pole 7.5 W |
Pollution Degree | 3 |
Handle Type | Pistol handle and shaft included |
Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - With Solid Link |
Switches Operating Mechanism | 22 (Between the Poles) |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Fuse Size | NH000 |
Fuse System | DIN |
Operating Mode | Front Operated |
Standards | IEC 60947-3 |
Mounting Type | Base mounting |
Number of Poles | 4 |
Cable Cross-Section | 2.5 ... 25 mm² |
Terminal Type | Screw Terminals |
Tightening Torque | 3 N·m4 N·m |
Rated Current (In) | Main Circuit 63 A |
Item | Value |
---|---|
Tightening Torque | 3 N·m4 N·m |
Item | Value |
---|---|
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Item | Value |
---|---|
Object Classification Code | Q |
ETIM 9 | EC001040 - Fuse switch disconnector |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3660335 |
E-Number (Sweden) | 3172113 |
