3SE5114-1LH50-1AD4 - POS.METAL 50041, LED, M12, 8-POLE
by Siemens
Original price
$140.77
-
Original price
$140.77
Original price
$140.77
$140.77
-
$140.77
Current price
$140.77

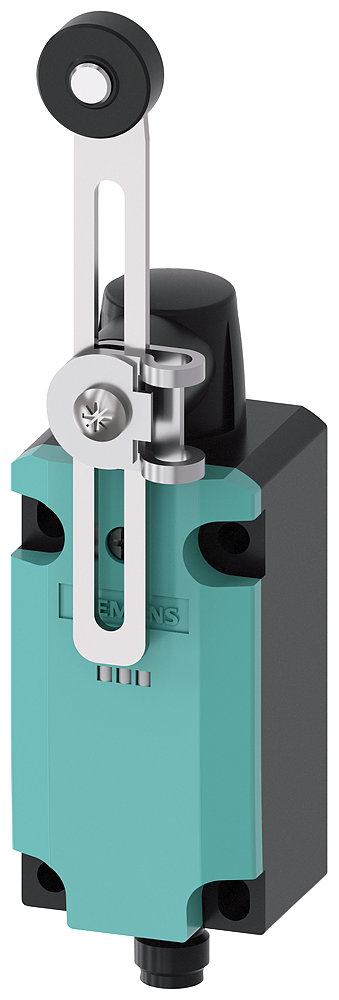

POSITION SWITCH 3SE51, METAL ENCLOSURE 40MM ACC.TO EN50041,1NO/2NC SNAP-ACT.CONT. WITH M12-CONNECT.,8-POLE METAL WITH 2 LED, YELL/GREEN, 24V DC, WITH LENGTH-ADJ. TWIST LEVER PIN-ASSIGN.: PIN1=21, PIN2=22, PIN3=13 AND LED GREEN, PIN4=14 AND LED YELL.,PIN5=31,PIN6=32, PIN7=GROUND LED, PIN8= PE
| Item | Value |
|---|---|
| Width sensor | 40 mm |
| Country of Origin | DE |
| Forced opening | false |
| Material housing | Metal |
| Type of interface | None |
| Height of sensor | 53.2 mm |
| Output electronic | false |
| Length of sensor | 198.4 mm |
| Coating housing | Lacquered |
| With status indication | true |
| Degree of protection (NEMA) | 12 |
| Construction type housing | Cuboid |
| Switching function latching | false |
| Degree of protection (IP) | IP66/IP67 |
| Suitable for safety functions | false |
| Number of safety auxiliary contacts | 0 |
| Switching function | Quick-break switch |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Rated operation current Ie at DC-13, 24 V | 1.5 A |
| Ambient temperature during operating | -25 °C |
| Number of contacts as normally closed contact | 2 |
| Type of control element | Adjustable rotary lever |
| Type of interface for safety communication | None |
| Type of electric connection | Plug-in connection M12 |
| Alignment of the control element | Roller cam straight |
