1SDA070928R1 - E2.2N 1000 Ekip Hi-Touch LSI 3p F HR
by ABB
Original price
$5,992.52
-
Original price
$5,992.52
Original price
$5,992.52
$5,992.52
-
$5,992.52
Current price
$5,992.52

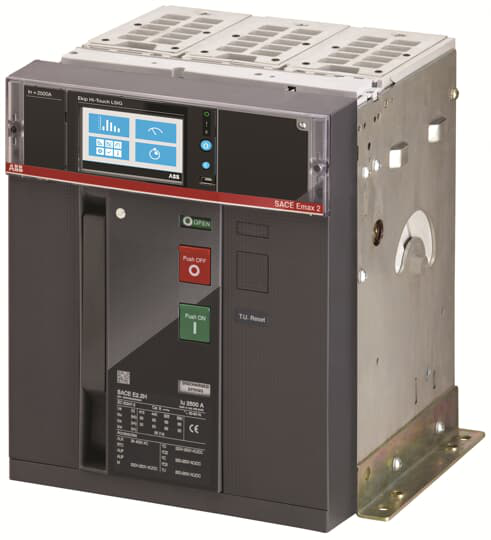

C.BREAKER SACE EMAX2 E2.2N 1000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
| Item | Value |
|---|---|
| ABB EcoSolutions | Yes |
| Item | Value |
|---|---|
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2361 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A1902 9AKK108468A1909 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy (IT) |
| Item | Value |
|---|---|
| Order Code US and Canada | Z2NQEGBJ200A000000XX |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Item | Value |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour |
| Mechanical Durability | 25000 cycle60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | 53 W |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Current (In) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kAfor 3 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
