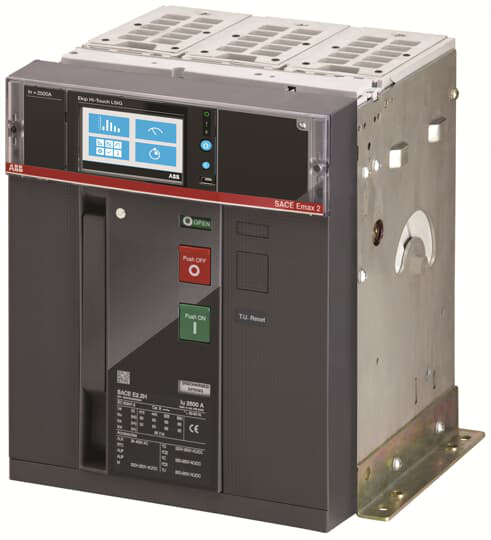

1SDA071048R1 - E2.2S 2000 Ekip Hi-Touch LSI 3p F HR
by ABB
Original price
$8,100.78
-
Original price
$8,100.78
Original price
$8,100.78
$8,100.78
-
$8,100.78
Current price
$8,100.78
C.BREAKER SACE EMAX2 E2.2S 2000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
| Item | Value |
|---|---|
| ABB EcoSolutions | Yes |
| Item | Value |
|---|---|
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2361 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A1902 9AKK108468A1909 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a2d89988-e42e-453e-931e-f6f37ca16dbc Italy (IT) |
| Simplified SCIP | 272b19e5-9090-45b4-a731-36eb9624325f France (FR)90b595c3-4580-457b-b1d7-94eb505e15d1 Norway (NO)a3571a66-1b26-4637-9c15-0a7bcdd1fc95 Poland (PL)c6fcbf49-7da1-4b08-a86d-949283da7a46 Hungary (HU)d483a4ae-b9d7-4881-b60a-97c0c82650c3 France (FR)caa3faae-1b33-4dfa-bf38-3fc870813498 Bulgaria (BG)86930bc1-b812-41c9-9d8b-21466f096485 Germany (DE)3d389629-16df-4f19-9cef-164cb62ce371 Croatia (HR)1aab9b9d-b75e-43d8-b65c-46cfb0e66597 Germany (DE)26b9d7b5-79ea-4a33-bf5c-3a47b1177041 Belgium (BE)24cec120-1498-4180-af91-7ad1f823b958 Finland (FI)73f323cc-36e6-4903-a19f-145819b5322a Netherlands (NL)8ffce991-cb54-45f7-a72c-94ab125874d4 Greece (GR)76a6078f-2f16-4424-8460-d637d297d83e Estonia (EE)75aa3df6-9fa5-4a46-ac26-89ae890388eb Sweden (SE)ec904edf-fdb2-42cc-805b-3b2675a8550b Denmark (DK)004d0f09-728b-4702-bb9b-38c16eaf16d1 Germany (DE)99bdf4b9-4649-4101-8871-357ddf018578 Germany (DE)7cbba5e6-9283-4e69-8e35-a2ad642eb021 Czech Republic (CZ)3111b641-c6ed-4c82-8cc1-31f48ea4d678 Poland (PL)e588a2f1-909e-4525-b8c9-66454945e8a9 Poland (PL)254575ec-e22e-4060-b43c-14b62a0e8e82 Portugal (PT)b296f33e-c991-4520-9cbe-699977166925 Sweden (SE)bf2ab24a-5eb6-4711-aa27-a0f910b2022e Hungary (HU)7585c40a-aa7e-4236-8f8c-ff0c45e39e73 Belgium (BE)29dfe5ec-0583-4cbe-8885-fa6446627923 Spain (ES) |
| Item | Value |
|---|---|
| Order Code US and Canada | Z2STEKBJ200A000000XX |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Item | Value |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour |
| Mechanical Durability | 25000 cycle60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | 212 W |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Current (In) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kAfor 3 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
