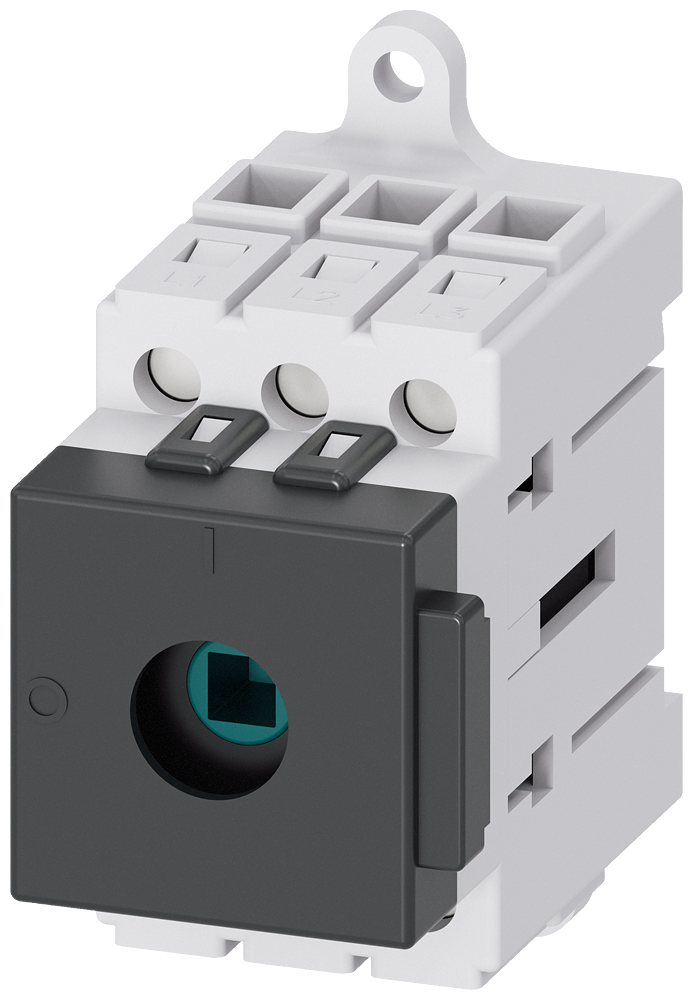

3LD3010-0TK05 - Main switch 3-pole Rated
by Siemens
Original price
$21.90
-
Original price
$21.90
Original price
$21.90
$21.90
-
$21.90
Current price
$21.90
Load disconnector 3LD3, Iu 16 AMain switch 3-pole Ratedoperating capacity at AC-23 Aat 400V 7.5kW Installation indistribution boards, Basicswitch without Knob-operatedmechanism
| Item | Value |
|---|---|
| Country of Origin | DE |
| Number of poles | 3 |
| Interlockable | true |
| Number of switches | 1 |
| Motor drive optional | false |
| Version as main switch | true |
| Colour control element | Other |
| Motor drive integrated | false |
| Type of control element | None |
| Version as safety switch | true |
| Voltage release optional | false |
| Rated permanent current Iu | 16.0 A |
| Degree of protection (NEMA) | Other |
| Suitable for ground mounting | true |
| Version as reversing switch | false |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operation power at AC-3, 400 V | 6 kW |
| Suitable for front mounting 4-hole | false |
| Suitable for front mounting centre | false |
| Rated operation power at AC-23, 400 V | 8 kW |
| Degree of protection (IP), front side | IP20 |
| Rated permanent current at AC-21, 400 V | 16 A |
| Rated permanent current at AC-23, 400 V | 16 A |
| Version as emergency stop installation | true |
| Version as maintenance-/service switch | true |
| Rated short-time withstand current lcw | 0.5 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Frame clamp |
| Device construction | Built-in device fixed built-in technique |
