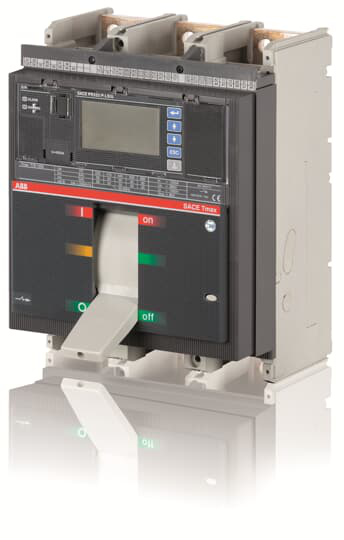

1SDA062999R1 - T7S 1600 PR332/P LSIG In=1600A 3p F F
by ABB
Original price
$4,882.43
-
Original price
$4,882.43
Original price
$4,882.43
$4,882.43
-
$4,882.43
Current price
$4,882.43
C.BREAKER TMAX T7S 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR332/P-LSIG R 1600
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 210 mm |
Product Net Height | 268 mm |
Product Net Depth / Length | 154 mm |
Product Net Weight | 9.7 kg |
Item | Value |
---|---|
Electrical Durability | 2000 cycle60 cycles per hour |
Mechanical Durability | 10000 cycle60 cycles per hour |
Number of Poles | 3 |
Power Loss | at Rated Operating Conditions per Pole 77 W |
Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 1600 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
Rated Uninterrupted Current (Iu) | 1600 A |
Release | PR332/P LSIG |
Release Type | EL |
Short-Circuit Performance Level | S |
Standards | IEC |
Sub-type | T7 |
Suitable For | T7 |
Suitable for Product Class | Moulded Case Circuit Breakers |
Terminal Connection Type | Fixed Circuit-BreakersFront |
Version | F |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
