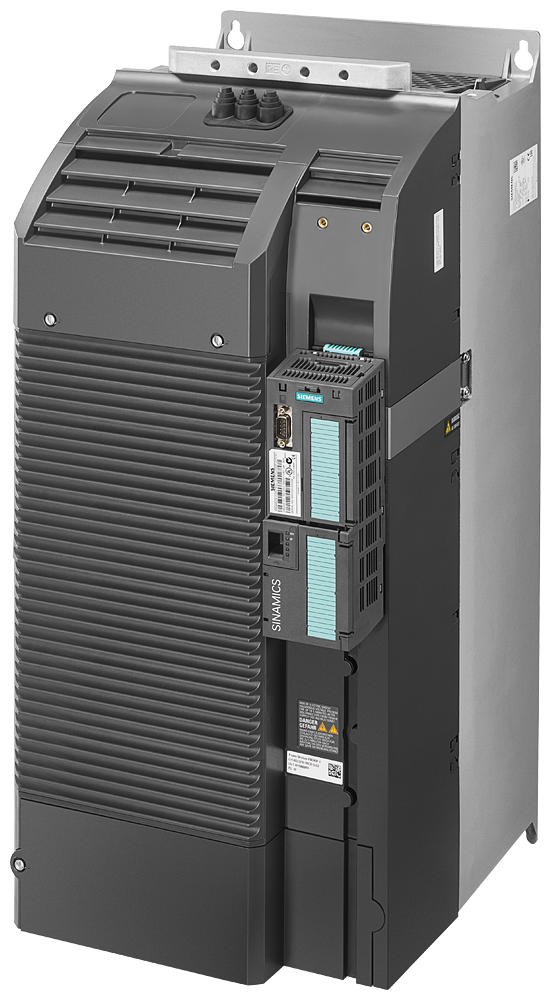

6SL32230DE311AG1 - SINAMICS PM230-IP55-FSC-A-400V 11KW
by Siemens
Original price
$2,307.42
-
Original price
$2,307.42
Original price
$2,307.42
$2,307.42
-
$2,307.42
Current price
$2,307.42
SINAMICS g120p power module pm230 with built in cl. a filter protection ip55 / ul type12 3AC380-480v +10/-10% 47-63HZ output low overload 11KW for 150% 3s.110% 57s.100% 240s ambie. temp -10 to+40 deg c(lo) 620 x 230 x 249 (hxbxt). fsc without control unit and panel approved for cu230p-2 firmware-version v4.3.2
| Item | Value |
|---|---|
| Country of Origin | GB |
| Depth | 249 mm |
| Width | 230 mm |
| Height | 620 mm |
| Mains voltage | 380 V |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Max. output frequency | 550 Hz |
| Type of converter | U converter |
| Degree of protection (IP) | IP55 |
| Nominal output current I2N | 26 A |
| 4-quadrant operation possible | false |
| Integrated breaking resistance | false |
| Application in industrial area permitted | true |
| Relative symmetric net frequency tolerance | 5 % |
| Relative symmetric net voltage tolerance | -10 % |
| Max. output at linear load at rated output voltage | 7.5 kW |
| Max. output at quadratic load at rated output voltage | 11 kW |
| Application in domestic- and commercial area permitted | false |
