1SDA060317R1 - T6L800 TMA800-8000 4pFF N100% 1000VAC/DC
by ABB
Original price
$3,519.01
-
Original price
$3,519.01
Original price
$3,519.01
$3,519.01
-
$3,519.01
Current price
$3,519.01

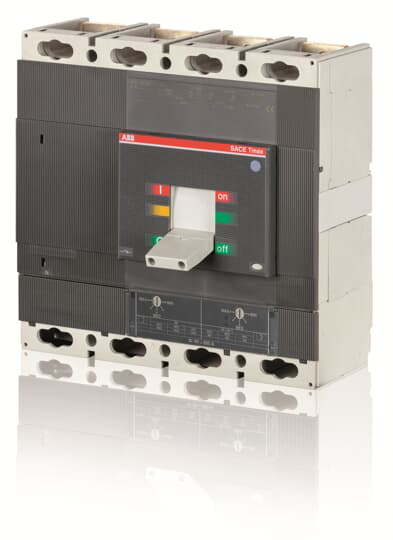

C.BREAKER TMAX T6L 800 1000V AC-DC FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 800 I3=4000...8000 A FULLY RATED
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1058 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 280 mm |
Product Net Height | 268 mm |
Product Net Depth / Length | 103.5 mm |
Product Net Weight | 12 kg |
Item | Value |
---|---|
Electrical Durability | 5000 cycle60 cycles per hour |
Mechanical Durability | 20000 cycle120 cycles per hour |
Number of Poles | 4 |
Power Loss | at Rated Operating Conditions per Pole 31 W |
Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 800 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 1000 V AC1000 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 6 kA(1150 V AC) 12.5 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 12 kA(1000 V DC) 50 kA |
Rated Uninterrupted Current (Iu) | 800 A |
Release | TMA |
Release Type | TM |
Short-Circuit Performance Level | L |
Standards | IEC |
Sub-type | T6 |
Suitable For | T6 |
Suitable for Product Class | Moulded Case Circuit Breakers |
Terminal Connection Type | Fixed Circuit-BreakersFront |
Test Voltage Max (Utest) | 3500 V |
Version | F |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
