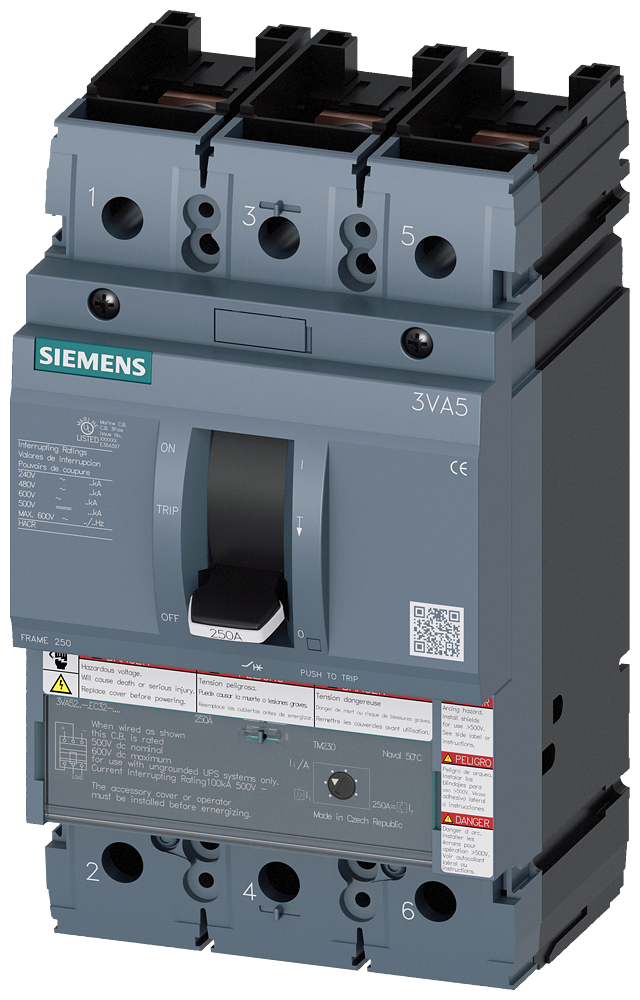

3VA5210-6EC32-1AA0 - BRKR 3VA52 3P 100A 65KA FTAM NAV NUT

3VA5210-6EC32-1AA0 - BRKR 3VA52 3P 100A 65KA FTAM NAV NUT

by Siemens
$560.32 - $560.32
$560.32
$560.32 - $560.32
$560.32

OEZ-LK1496-ST250



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 100 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 100 A
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Adjustment range undelayed short-circuit release 500 A
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique

SIRIUS Circuit breaker S00 / S0
