3VA2063-8HN42-0AA0 - BRKR 3VA20 4P 63A 150KA ETU3-LSI NUT

3VA2063-8HN42-0AA0 - BRKR 3VA20 4P 63A 150KA ETU3-LSI NUT

by Siemens
$619.99 - $619.99
$619.99
$619.99 - $619.99
$619.99

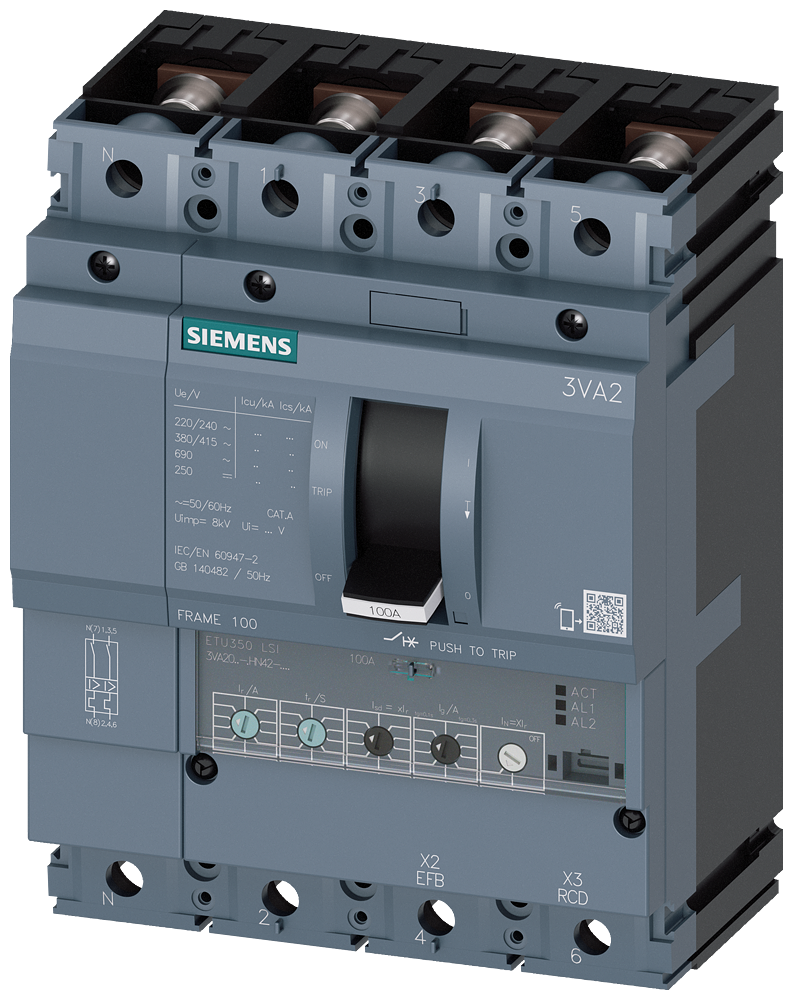

SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA20 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 63A 4-POLE Icu: (24KAIC AT 690V) (150KAIC AT 415V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 5.5 x 7.1 x 4.2.



Specifications
Item Value
Number of poles 4
Country of Origin CZ
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 63 A
With switched-off indicator false
Overload release current setting 25 A
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Adjustment range undelayed short-circuit release 756 A
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Type of electrical connection of main circuit Screw connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 150 kA
