3VA1340-1AA32-0AA0 - MCSW 3VA13 3P 400A NUT
by Siemens
Original price
$576.36
-
Original price
$576.36
Original price
$576.36
$576.36
-
$576.36
Current price
$576.36

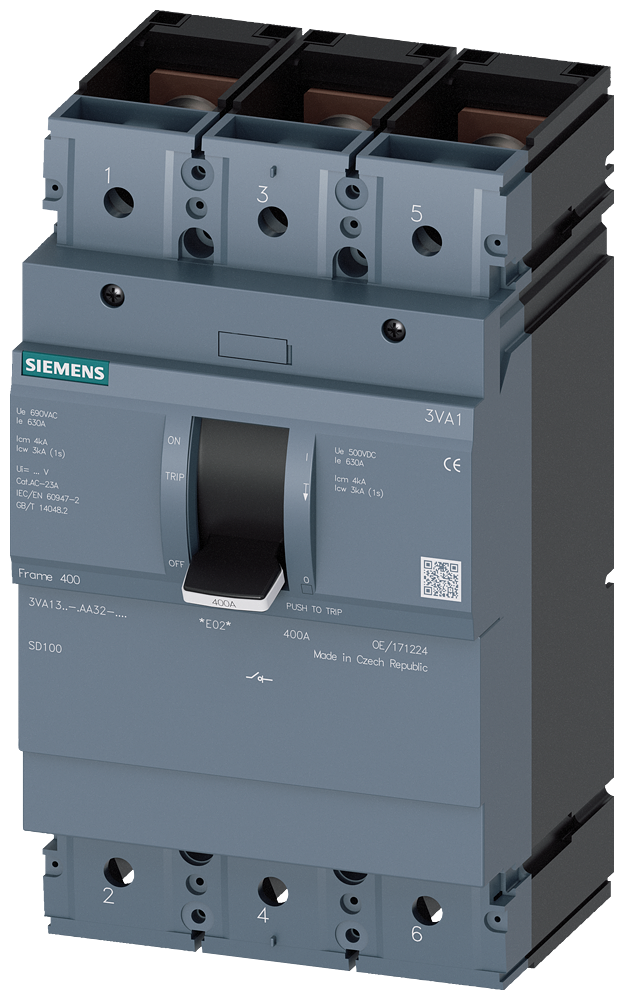

SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE SWITCH WITH SELF-PROTECTING INSTANTANEOUS TRIP UNIT. 3VA13 FRAME. 400A 3-POLE. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 5.4 x 9.8 x 5.4.
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Number of poles | 3 |
| Interlockable | false |
| Motor drive optional | true |
| Version as main switch | true |
| Motor drive integrated | false |
| Version as safety switch | true |
| Voltage release optional | true |
| Rated permanent current Iu | 400.0 A |
| Type of control element | Rocker lever |
| Max. rated operation voltage Ue AC | 690 V |
| Suitable for front mounting 4-hole | true |
| Suitable for front mounting centre | false |
| Degree of protection (IP), front side | IP40 |
| Version as emergency stop installation | true |
| Version as maintenance-/service switch | true |
| Rated permanent current at AC-23, 400 V | 400 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Device construction | Built-in device fixed built-in technique |
| Type of electrical connection of main circuit | Rail connection |
