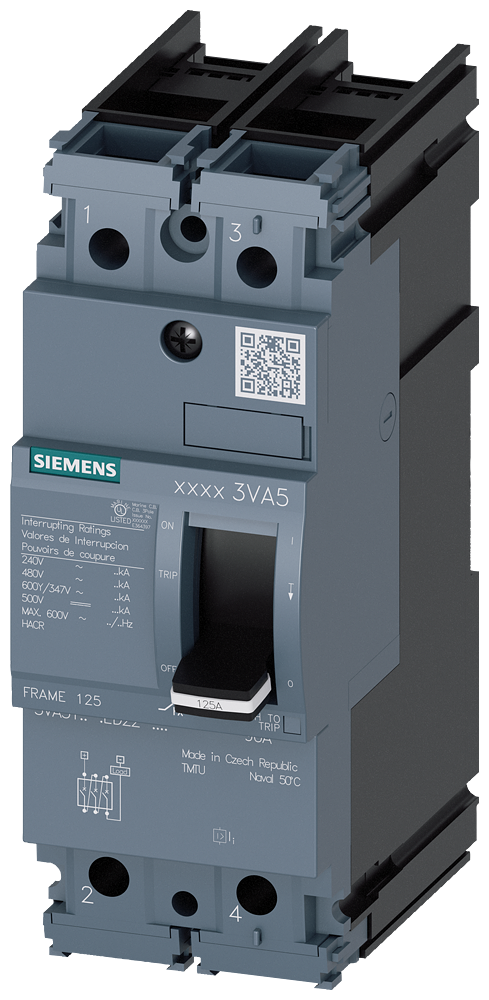

3VA5145-5ED22-1AA0 - BRKR 3VA51 2P 45A 35KA FTFM NAV NUT

3VA5145-5ED22-1AA0 - BRKR 3VA51 2P 45A 35KA FTFM NAV NUT

by Siemens
$210.05 - $210.05
$210.05
$210.05 - $210.05
$210.05

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 45A 2-POLE (18KAIC AT 600Y/347) (35KAIC AT 480V). TM210 TRIP UNIT WITH FIXED Ir FIXED Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER NAVAL RATED 50C. DIMENSIONS (W x H x D) IN: 2 x 5.5 x 3.7.



Specifications
Item Value
Country of Origin CZ
Number of poles 2
Rated voltage 415 V
Motor drive optional false
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 45 A
With switched-off indicator false
Overload release current setting 32 A
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Adjustment range undelayed short-circuit release 450 A
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
