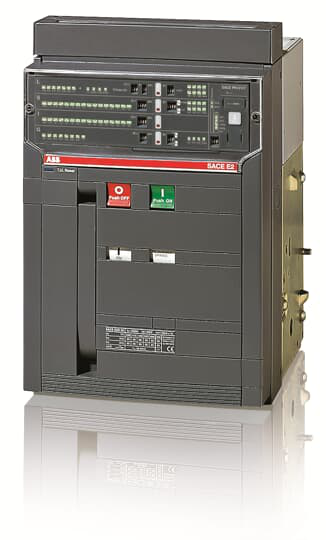

1SDA055921R1 - E2N 2000 PR121/P-LSI In=2000A 3p F HR
by ABB
Original price
$13,405.67
-
Original price
$13,405.67
Original price
$13,405.67
$13,405.67
-
$13,405.67
Current price
$13,405.67
SACE EMAX CIRCUIT-BREAKER E2N 2000A THRE-POLE FIXED WITH TERMINALS REAR HORIZONTAL OVERCURRENT RELEASE PR121/P-LSI R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
Item | Value |
---|---|
Environmental Information | 9AKK10103A6076 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 296 mm |
Product Net Height | 418 mm |
Product Net Depth / Length | 302 mm |
Product Net Weight | 45 kg |
Item | Value |
---|---|
Current Type | AC |
Electrical Durability | Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour |
Mechanical Durability | 25000 cycle60 cycles per hour |
Number of Poles | 3 |
Power Loss | 180 W |
Product Main Type | SACE Emax |
Product Name | Air Circuit Breaker |
Product Type | Air Circuit Breaker |
Rated Current (In) | 2000 A |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current (Ie) | 2000 A |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA(230 V AC) 65 kA(380 V AC) 65 kA(400 V AC) 65 kA(415 V AC) 65 kA(440 V AC) 65 kA(500 V AC) 55 kA(660 V AC) 55 kA(690 V AC) 55 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kAfor 3 s 42 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA(230 V AC) 65 kA(380 V AC) 65 kA(400 V AC) 65 kA(415 V AC) 65 kA(440 V AC) 65 kA(500 V AC) 55 kA(660 V AC) 55 kA(690 V AC) 55 kA |
Rated Uninterrupted Current (Iu) | 2000 A |
Release | PR121/P-LSI |
Release Type | EL |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | E2 |
Terminal Connection Type | Fixed Circuit-BreakersRear flat Horizontal |
Version | F |
Item | Value |
---|---|
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
