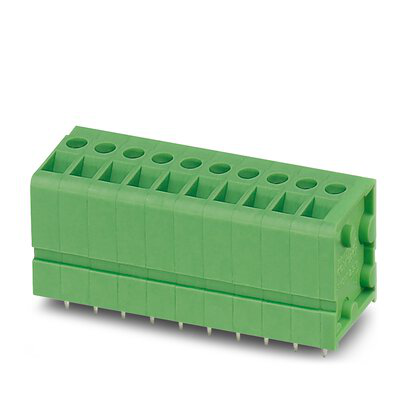

1704114 - FRONT 2,5-V/SA10/ 2 - PCB terminal block

1704114 - FRONT 2,5-V/SA10/ 2 - PCB terminal block

by Phoenix Contact
$43.22 - $43.22
$43.22
$43.22 - $43.22
$43.22

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: FRONT 2,5-V/SA10, pitch: 5 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!



Specifications
Item Value
Country of Origin Germany
Nominal Current 24 A
Number Of Potentials 2
Number Of Rows 1
Product Range FRONT 2
Pitch 5 mm
Connection Method Front screw connection
Mounting Wave Soldering
Color Green
Pin Layout Linear double pinning
Type Of Packaging packed in cardboard. The article can be aligned to create different nos. of positions!
