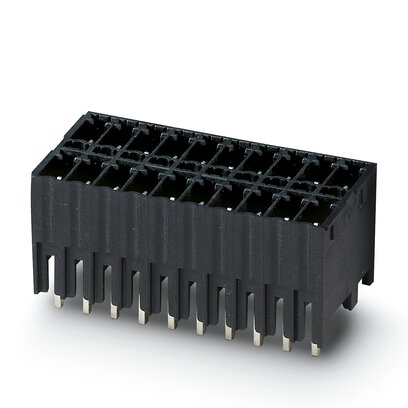

1750449 - MCDNV 1,5/17-G1-3,81 P26THR - PCB header
Original price
$333.88
-
Original price
$333.88
Original price
$333.88
$333.88
-
$333.88
Current price
$333.88
PCB headers, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 34, number of rows: 2, number of positions: 17, number of connections: 34, product range: MCDNV 1,5/..-G1-THR, pitch: 3.81 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard, The pin length is 26 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: http: "Downloads".
| Item | Value |
|---|---|
| Country of Origin | Germany |
| Color | Black |
| Nominal Current | 8 A |
| Contact Surface | Tin |
| Type Of Contact | Male connector |
| Number Of Potentials | 34 |
| Number Of Rows | 2 |
| Number Of Positions | 17 |
| Product Range | MCDNV 1 |
| Pitch | 3.81 mm |
| Mounting | THR Soldering |
| Pin Layout | Linear pinning |
| Locking | Without |
| Type Of Packaging | packed in cardboard |
