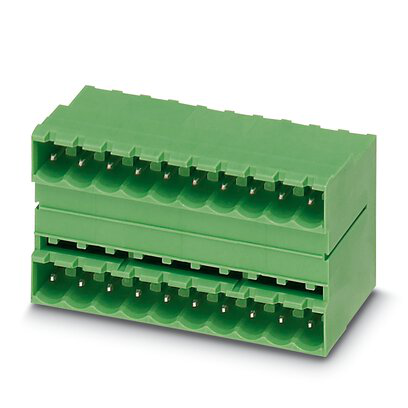

1762499 - MDSTB 2,5/15-G1-5,08 - PCB header
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 30, number of rows: 2, number of positions: 15, number of connections: 30, product range: MDSTB 2,5/..-G1, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard, In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!
| Item | Value |
|---|---|
| Country of Origin | Greece |
| Color | Green |
| Nominal Current | 10 A |
| Contact Surface | Tin |
| Type Of Contact | Male connector |
| Number Of Potentials | 30 |
| Number Of Rows | 2 |
| Number Of Positions | 15 |
| Product Range | MDSTB 2 |
| Pitch | 5.08 mm |
| Mounting | Wave Soldering |
| Pin Layout | Linear pinning |
| Locking | Without |
| Type Of Packaging | packed in cardboard |
