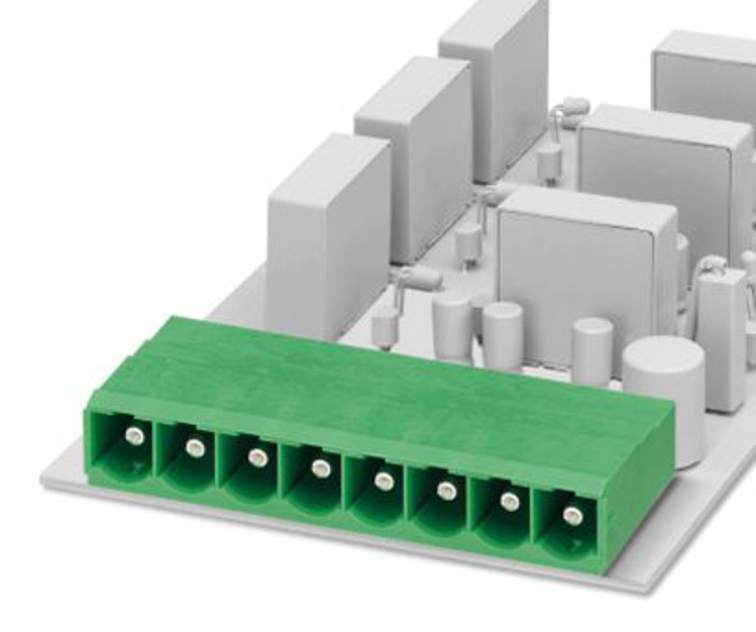

1972849 - PC 6-16/ 4-G-10,16 CP 1,4 - PCB header

1972849 - PC 6-16/ 4-G-10,16 CP 1,4 - PCB header

by Phoenix Contact
$333.23 - $333.23
$333.23
$333.23 - $333.23
$333.23

PCB headers, nominal cross section: 6 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Silver, type of contact: Male connector, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PC 6-16/..-G, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear three-way pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard



Specifications
Item Value
Country of Origin Poland
Color Green
Nominal Current 76 A (41 A in combination with PC 6 plug)
Contact Surface Silver
Type Of Contact Male connector
Number Of Potentials 4
Number Of Rows 1
Number Of Positions 4
Product Range PC 6-16/..-G
Pitch 10.16 mm
Mounting Wave Soldering
Pin Layout Linear three-way pinning
Locking Without
Type Of Packaging packed in cardboard
