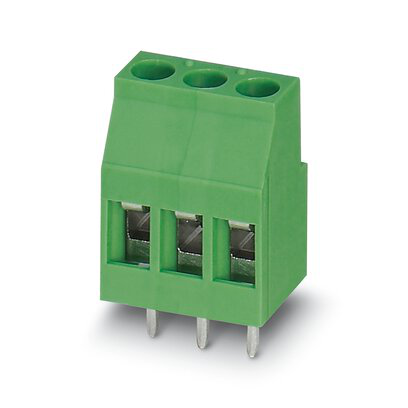

1714722 - MKDSP 3/ 2-5,08 - PCB terminal block
Original price
$48.91
-
Original price
$48.91
Original price
$48.91
$48.91
-
$48.91
Current price
$48.91
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDSP 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
| Item | Value |
|---|---|
| Country of Origin | Germany |
| Nominal Current | 24 A |
| Number Of Potentials | 2 |
| Number Of Rows | 1 |
| Product Range | MKDSP 3 |
| Pitch | 5.08 mm |
| Connection Method | Screw connection with tension sleeve |
| Screw Head Form | L Slotted |
| Mounting | Wave Soldering |
| Color | Green |
| Pin Layout | Linear pinning |
| Type Of Packaging | packed in cardboard. The article can be aligned to create different nos. of positions! |
