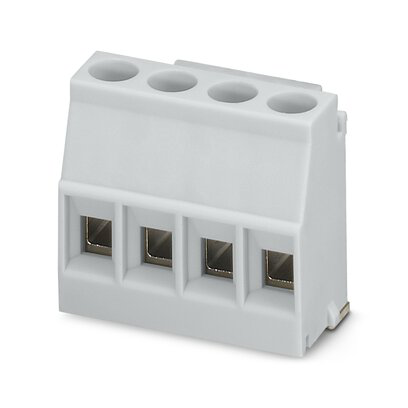

2201202 - MKDSO 2,5/ 4-L KMGYBD:43,C1-40 - PCB terminal block

2201202 - MKDSO 2,5/ 4-L KMGYBD:43,C1-40 - PCB terminal block

by Phoenix Contact
$970.21 - $970.21
$970.21
$970.21 - $970.21
$970.21

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: MKDSO 2,5/..-L, pitch: 5 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: light grey, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. Product with pin output on left side



Specifications
Item Value
Country of Origin Germany
Nominal Current 24 A
Number Of Potentials 4
Number Of Rows 1
Product Range MKDSO 2
Pitch 5 mm
Connection Method Screw connection with tension sleeve
Mounting Wave Soldering
Color Light Grey
Pin Layout Linear pinning
Type Of Packaging packed in cardboard. Product with pin output on left side
