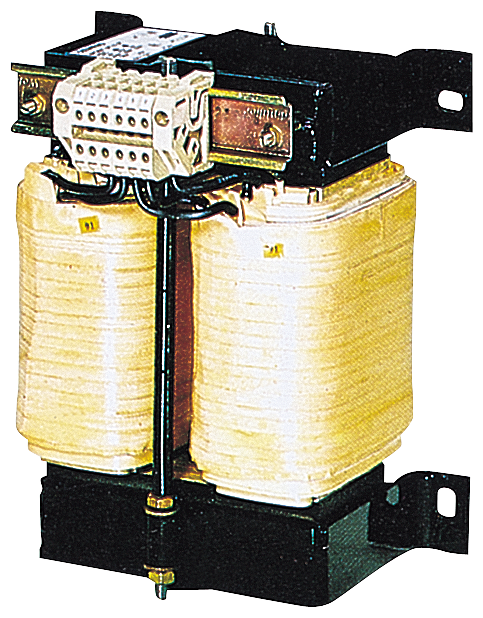

4AT3032-5CT10-0FA0 - 1-PH. SITAS-TRANSFORMER

4AT3032-5CT10-0FA0 - 1-PH. SITAS-TRANSFORMER

by Siemens
$1,937.87 - $1,937.87
$1,937.87
$1,937.87 - $1,937.87
$1,937.87

>ISOLATION TRANSFORMER< CIRCUIT TRANSFORMER< 61558-2-1, -2-2, -2-4 >CONTROL INSTALLATION:SCREW; EN TERMINALS:SCREW CONNECTION; TA/ISOKL:55 /H; IP00; TYPE OF VECTOR GR./SHIELD WNG.:II0 /0; ISEC(A):17,4; F(HZ):50...60; UPRI(V):440+/-5%; USEC(V):230; PN/PN(S6)(KVA):4 /17,8; TRANSFORMER SITAS; PHASES:1;



Specifications
Item Value
Depth 155 millimetre
Country of Origin CZ
Width 164 millimetre
Height 270 millimetre
Protection type IP IP00
max. primary voltage 1 462 volt
max. primary voltage 2 440 volt
max. primary voltage 3 418 volt
min. primary voltage 1 462 volt
min. primary voltage 2 440 volt
min. primary voltage 3 418 volt
max. secondary voltage 1 230 volt
min. secondary voltage 1 230 volt
Rated performance 4000 volt ampere
designed as safety transformer false
suitable for series installation false
designed as isolating transformer false
designed as compensator transformer false
suitable for circuit-board mounting false
Insulation Material Class acc. to IEC 85 H
relative short-circuit voltage 3.44 percent
