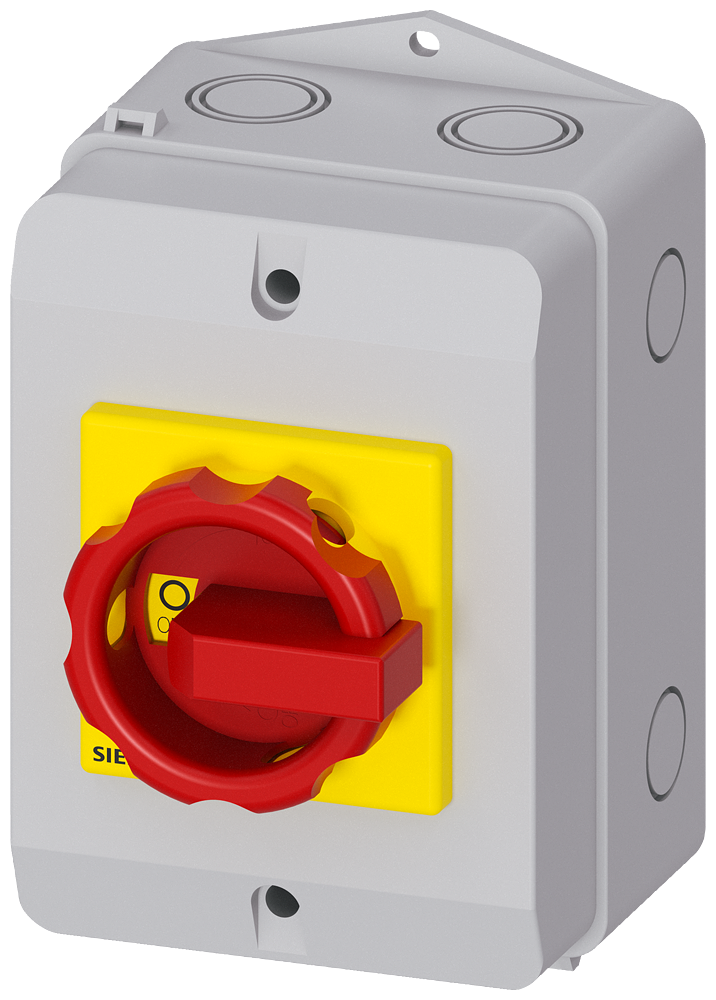

3LD2264-0TB53-0US2 - DISC SW 32A N4X SCW ROT HDL R/Y 3P

3LD2264-0TB53-0US2 - DISC SW 32A N4X SCW ROT HDL R/Y 3P

by Siemens
$123.20 - $123.20
$123.20
$123.20 - $123.20
$123.20

SENTRON, 3LD switch disconnector, EMERGENCY-STOP switch, 3-pole, Iu:32 A, Operational power / at AC-23 A at 400 V: 11,5 kW, molded- plastic enclosure for inch threaded joint, rotary operating mechanism, red/yellow



Specifications
Item Value
Country of Origin DE
Number of poles 3
Interlockable true
Number of switches 1
Colour control element Red
Motor drive optional false
Version as main switch true
Motor drive integrated false
Version as safety switch true
Rated permanent current Iu 32 A
Voltage release optional false
Degree of protection (NEMA) Other
Version as reversing switch false
Suitable for ground mounting false
Max. rated operation voltage Ue AC 690 V
Suitable for front mounting centre true
Suitable for front mounting 4-hole false
Type of control element Short thumb-grip
Rated operation power at AC-3, 400 V 10 kW
Degree of protection (IP), front side IP65
Rated operation power at AC-23, 400 V 12 kW
Rated permanent current at AC-21, 400 V 32 A
Rated permanent current at AC-23, 400 V 22 A
Version as emergency stop installation true
Version as maintenance-/service switch true
Rated short-time withstand current lcw 0.64 kA
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Type of electrical connection of main circuit Frame clamp
Device construction Built-in device fixed built-in technique
