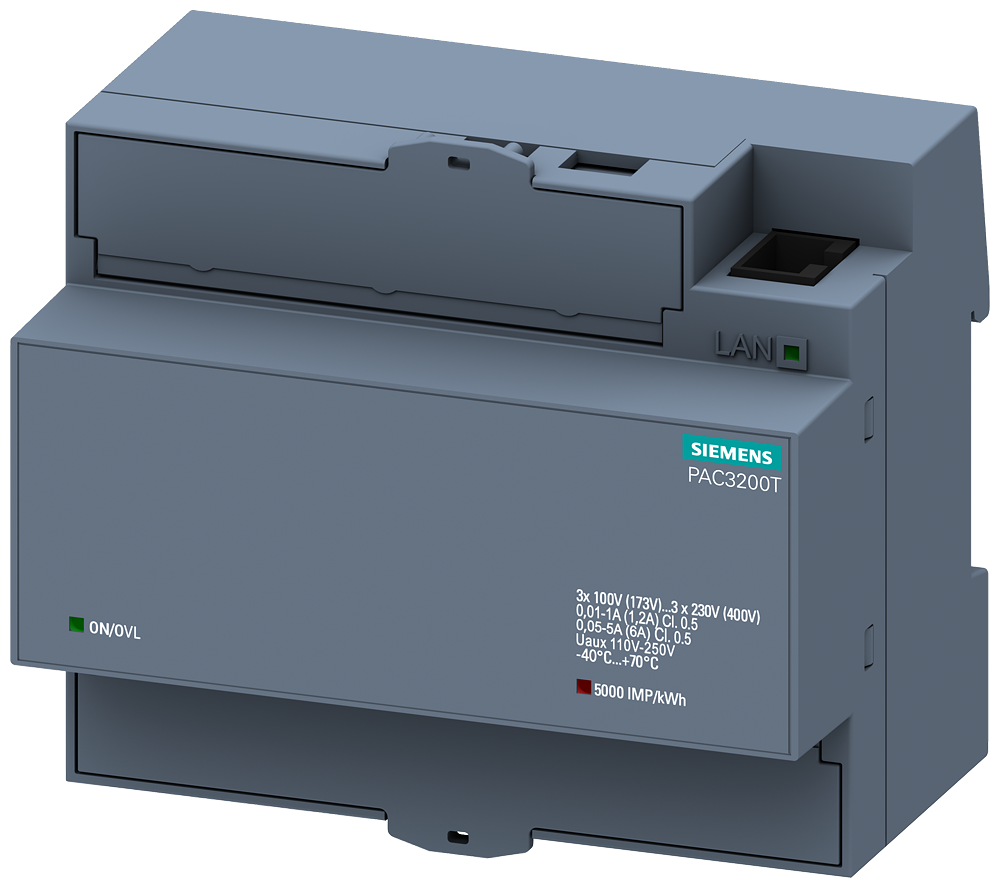

7KM3200-0CA01-1AA0 - PAC3200T, No DISP, DIN RAIL, AC/DC, 2RJ45
by Siemens
Original price
$366.59
-
Original price
$366.59
Original price
$366.59
$366.59
-
$366.59
Current price
$366.59
PAC3200T DIN Rail Mount Power Meter without DISPLAY, AC/DC, 100+ Measurements, THD harmonics, 1-Dig In <(>&<)> 1-Dig Out, Modbus TCP, Standard 10/100Base-T Ethernet with up to 2 master ability. L-L: 400 V, L-N: 230 V, 5 A, strd rail instr., 3-phase, MODBUS TCP, apparent /active/reactive energy, wide-range pwr sup. unit AC/DC, screw terminals
Item | Value |
---|---|
Depth | 64 mm |
Country of Origin | DE |
EF015385 | 3 |
EF015388 | 3 |
Height | 90 mm |
Width | 108 mm |
EF015391 | true |
EF015392 | true |
EF015390 | false |
Voltmeter | true |
Ampere meter | true |
Pulse counter | true |
Frequency meter | true |
Blind power meter | true |
Ethernet-connections | 0 |
Number of digital inputs | 1 |
Number of analogue inputs | 0 |
Number of digital outputs | 1 |
Number of analogue outputs | 0 |
Rotational speed meter | false |
Supply voltage AC 50 Hz | 230 V |
Supply voltage AC 60 Hz | 400 V |
Supporting protocol for MODBUS | true |
Supporting protocol for PROFIBUS | false |
Effective power measurement device | true |
Supporting protocol for PROFINET IO | false |
