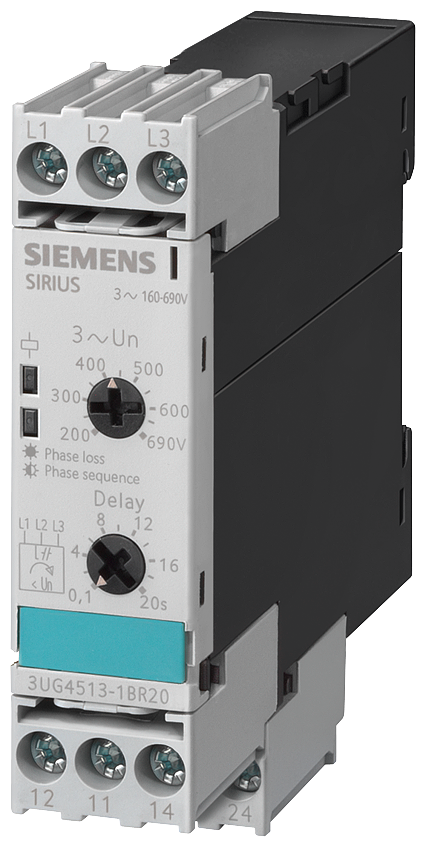

3UG4513-1BR20 - 3PH VOLTAGE MONITOR
by Siemens
Original price
$128.77
-
Original price
$128.77
Original price
$128.77
$128.77
-
$128.77
Current price
$128.77
3ug3013-1b... follow-on product for screw terminal 2 changeover contacts delay time 0-20 s hysteresis 5% fixed AC 50 to 60 HZ 3x 160 to 690 v asymmetry 20% fixed settable undervoltage phase failure and sequence
Item | Value |
---|---|
Depth | 91 millimetre |
Country of Origin | DE |
Width | 23 millimetre |
Height | 92 millimetre |
Number of changers | 2 |
Type of actuation | AC |
Number of making contacts | 0 |
Number of breaking contacts | 0 |
Phase sequence monitoring | true |
detachable terminals present | true |
Asymmetry recognition present | true |
max. voltage measuring range | 690 volt |
min. voltage measuring range | 160 volt |
Phase failure recognition possible | true |
function over-voltage detection present | false |
function undervoltage recognition present | true |
Design of electrical connection | Screw connection |
Max. rated AC voltage for controls, 50 Hz | 690 volt |
max. rated AC voltage for controls (60 Hz) | 690 volt |
min. rated control voltage Us with AC 50 Hz | 160 volt |
min. rated control voltage Us with AC 60 Hz | 160 volt |
