1SDA073381R1 - E6.2X/f 6300 Ekip Dip LI 4p WMP
by ABB
Original price
$29,341.19
-
Original price
$29,341.19
Original price
$29,341.19
$29,341.19
-
$29,341.19
Current price
$29,341.19

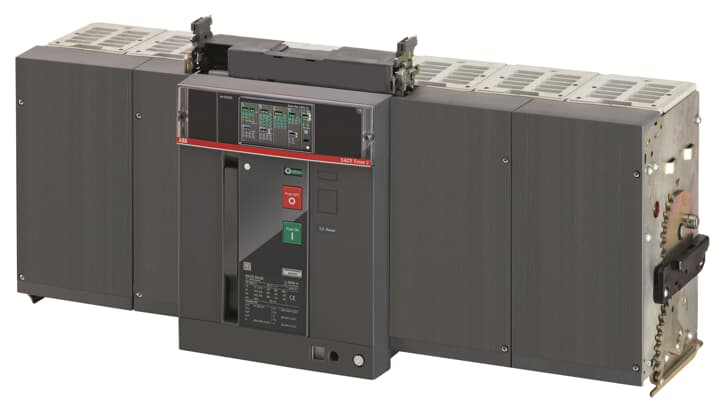

MOVING PART FOR C.BREAKER SACE EMAX2 E6.2X/f 6300 FOUR-POLE FULL SIZE NEUTRAL WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 6300 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
| Item | Value |
|---|---|
| ABB EcoSolutions | Yes |
| Item | Value |
|---|---|
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2364 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A1905 9AKK108468A1913 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 62d9662b-1fa1-442a-aa0a-ba281aa6a509 Italy (IT) |
| Simplified SCIP | c7dd754d-26b5-4064-a0e8-b138f86bdaa7 Spain (ES)1730199d-6d8c-40a2-a4cf-b15843579214 Belgium (BE)9cd80f24-7caa-4fab-a66b-326693ad358c Hungary (HU)348eb8da-d912-4e79-90bc-7164ecc1781e France (FR)76cfd2c0-f455-4991-b3d5-0c69171c5632 Norway (NO)989e7b37-de3c-4e05-98e8-710f63668121 Hungary (HU)e1b8829d-8682-43f0-934c-dec08cb0613c Poland (PL)f08df707-599f-4e11-b8aa-61cbbef9c092 Czech Republic (CZ)a5e25d3b-58a5-4962-9003-6f1691e5a526 Estonia (EE)747cde54-74f9-464e-8b9b-01e57e2ba6a7 Netherlands (NL)f3406f8b-9bff-4ed5-babb-016a21b225d5 Finland (FI)ab1eed5c-f914-4062-97c9-f88ee8f48ec2 Germany (DE)67f5bcc3-c98a-4e21-be6b-1b903ce61ff1 Denmark (DK)97cb2b42-073f-4f7d-bd89-9794e60f882d Germany (DE)89bdc8c4-48b1-40fc-8b27-41dc46bbed6c Belgium (BE)b2a9a2d7-267f-41b1-9d1b-d347e5f33fa6 Sweden (SE)ea0a9f0a-2018-4976-ab79-5cf1370d8688 Germany (DE)8e3117d9-ad75-477f-b4b2-b6ec81a7bcf3 France (FR)1d668ce6-5375-49dd-8fcb-e0d0a6f530f6 Germany (DE)e854316c-0958-48e1-ac97-c0acaf76de39 Croatia (HR)482d86eb-0c58-46f8-87aa-963fc21a811a Greece (GR)e569994a-68f0-48fa-8922-4c0c28e0f78f Poland (PL)d3b1b5db-f05d-4c3b-8ca9-3aa1e8adf776 Poland (PL)32e2de42-b647-43c0-ad04-b20c6b374758 Sweden (SE)16a9c29e-6d35-4317-b9c4-af7175e0a0e9 Bulgaria (BG)6557173f-a3fa-4d18-8136-e2e46aa5f6f6 Portugal (PT) |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 1069 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 148 kg |
| Item | Value |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 2000 cycleUe = 500 ... 690 V 2000 cycle10 cycles per hour |
| Mechanical Durability | 12000 cycle60 cycles per hour |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4 / f |
| Power Loss | 1550 W |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Current (In) | 6300 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 120 kAfor 3 s 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V AC) 200 kA |
| Rated Uninterrupted Current (Iu) | 6300 A |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | X |
| Standards | IEC |
| Sub-type | E6.2 |
| Version | W |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
