1SDA062035R1 - T7D 1000 4p F F M
by ABB
Original price
$2,951.12
-
Original price
$2,951.12
Original price
$2,951.12
$2,951.12
-
$2,951.12
Current price
$2,951.12

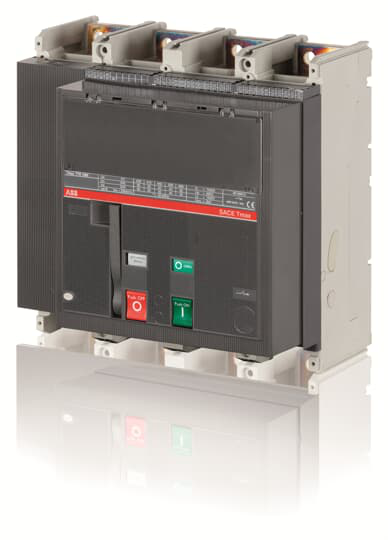

SWITCH-DISCONNECTOR TMAX T7D 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Item | Value |
|---|---|
| Number of Poles | 4 |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Rated Operational Voltage | 690 V AC750 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 A |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T7 |
| Suitable For | T7M |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
