1SDA054437R1 - T5N 400 TMA 400-4000 3p F F
by ABB
Original price
$829.97
-
Original price
$829.97
Original price
$829.97
$829.97
-
$829.97
Current price
$829.97

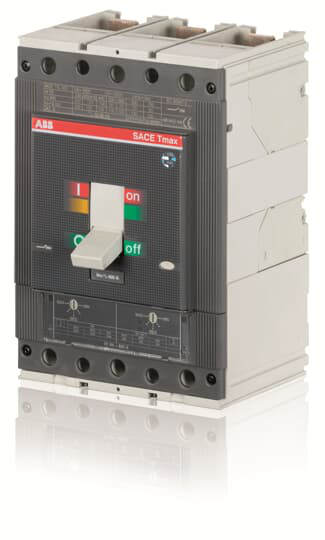

C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 A
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1056 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | e240f15e-f16b-4399-ab3b-dce16dffa499 Italy (IT) |
Simplified SCIP | 3764b526-f8d2-4398-912b-bc15a4c74014 Netherlands (NL)7293d1ef-589e-4b73-a8f4-1f55f27602f7 Norway (NO)a9f1aaf6-daa7-44d5-ae12-853adb7135d3 Finland (FI)3ff03868-1abe-440f-8c1d-d9d5f040bf26 Poland (PL)a6382117-d803-4f22-916c-b2cd0a418289 Denmark (DK)fff2cf62-101e-4ace-96c4-29f83ef6f895 Germany (DE)825937c9-1f0c-4909-bd2a-0b8795ac7555 Netherlands (NL)8e46bdd9-c2e4-4367-9b30-9f7107f84564 Greece (GR)36225241-3ee4-4b0d-ac1a-8c3ac9fad520 Estonia (EE)6452a0f3-d237-416a-a8a9-b0a0b77a93d6 Netherlands (NL)e1eb7bcb-a4d0-4297-828f-3f17588cd889 Netherlands (NL)97dbc296-447f-4b75-a4db-1480347f6a52 Poland (PL)edcfe745-4afc-4ca3-bd92-396f088cce14 Czech Republic (CZ)ca4e78d4-6076-468e-b5e2-f3aa1233e340 Croatia (HR)4fdf8fcd-aaaa-45b8-80ae-04fd2daa13bc Germany (DE)0f70a09b-cd21-4ca8-b23e-8b8d46f10517 France (FR)c9205c91-cedc-4fa5-acc9-f75e27977c27 Germany (DE)0407c6b9-dd84-461d-aa51-ccbf47cac33a Germany (DE)ca23f5f3-e4ab-447a-9db2-e92e7aa456e5 Sweden (SE)284a8814-ca39-4961-baff-2dfed7608b07 France (FR)875fb050-6239-4ad3-82f1-27455283b1b3 Poland (PL)13f16384-bbfb-47cd-9031-e872c96a4864 Sweden (SE)36b27bb5-2fbb-4753-893b-b6613839fb01 Bulgaria (BG)f99c5542-84fe-4743-9b2a-429609d212a2 Portugal (PT)ed70c4f8-2cb6-40e7-9f3f-d2b77b4b55cb Netherlands (NL)19e4fd73-540e-4dc1-958d-8040a5f04720 Spain (ES) |
Item | Value |
---|---|
E-Number (Finland) | 3655292 |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 140 mm |
Product Net Height | 205 mm |
Product Net Depth / Length | 103.5 mm |
Product Net Weight | 4.549 kg |
Item | Value |
---|---|
Electrical Durability | 7000 cycle60 cycles per hour |
Mechanical Durability | 20000 cycle120 cycles per hour |
Number of Poles | 3 |
Power Loss | at Rated Operating Conditions per Pole 19.5 W |
Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 400 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC750 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 25 kA(750 V DC) 3 Poles in Series 16 kA |
Rated Uninterrupted Current (Iu) | 400 A |
Release | TMA |
Release Type | TM |
RoHS Date | NA |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | T5 |
Suitable For | T5 |
Suitable for Product Class | Moulded Case Circuit Breakers |
Terminal Connection Type | Fixed Circuit-BreakersFront |
Test Voltage Max (Utest) | 3500 V |
Version | F |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
