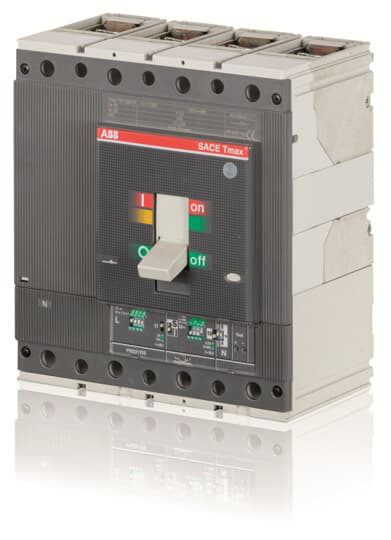

1SDA054400R1 - T5N 630 PR221DS-LS/I In=630 4p F F
by ABB
Original price
$1,497.12
-
Original price
$1,497.12
Original price
$1,497.12
$1,497.12
-
$1,497.12
Current price
$1,497.12
C.BREAKER TMAX T5N 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1056 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1ef62038-466e-4d5e-b297-673d2e08d94f Italy (IT) |
| Simplified SCIP | 1ca37dcb-611e-484a-a73d-b137838d1c36 Poland (PL)dbc2b372-a6a7-4903-9002-f9c44728f0a2 Norway (NO)d531713f-186b-435b-84bd-2af829758494 Denmark (DK)42bfcc89-144e-41c6-a511-e3cde4acd778 Netherlands (NL)7b42b3a4-1727-45f6-a014-61531e263a8b Germany (DE)5409184a-6d2b-4b76-b33f-60a8dd823c94 Germany (DE)449a9922-30c3-48f2-b72a-ac7c96c21e62 Croatia (HR)2db76d3b-a45e-4e49-880d-70800bd35a5b Czech Republic (CZ)b187ca6f-00b7-4de0-a87d-4d33a9703e42 Poland (PL)c8ff1953-228b-4329-94dc-4f8dcdef97ed Netherlands (NL)4d3ce60b-f2f2-4b1b-ba7e-c376436120e7 Netherlands (NL)2efb4ef8-9ba0-40ca-8067-c9eede81c47d Estonia (EE)731d6b4d-e257-428f-9232-6b4701f470ae Greece (GR)3a26f9ba-25f3-45a8-952c-602bbbfff1dc Portugal (PT)a950f9d9-2214-4375-86cf-96801050a0c5 Bulgaria (BG)454df9a4-676d-4e0a-a7d3-40d58da0b2f8 Sweden (SE)0f09f243-7e90-4dbd-b923-b8147efab4a4 Poland (PL)154a4345-cd14-4ed2-97b9-58ac5f37512c France (FR)cde03c5b-6921-42d6-be32-3f4ac825164b Sweden (SE)bb580d1b-d0c3-4ff0-84c2-206eca2cfe18 Germany (DE)807cbaee-bb31-4be8-a198-5b7603ecb764 Germany (DE)79759be1-6421-4b60-8692-28b16b58b5f5 France (FR)59290b0b-c293-40bd-8925-c5103ea8b5b1 Netherlands (NL)128ffab2-733d-4c61-ad74-9487f38c905e Spain (ES)fec609bd-f976-4cfb-8abf-61d483fbfcfa Netherlands (NL)f9a25847-74fb-4872-b41b-a6131ac55e06 Finland (FI) |
| Item | Value |
|---|---|
| E-Number (Finland) | 3655338 |
| E-Number (Sweden) | 3180378 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.052 kg |
| Item | Value |
|---|---|
| Electrical Durability | 5000 cycle60 cycles per hour |
| Mechanical Durability | 20000 cycle120 cycles per hour |
| Number of Poles | 4 |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
