1SDA056130R1 - E3N 2500 PR121/P-LSIG In=2500A 3p W MP
by ABB
Original price
$16,364.37
-
Original price
$16,364.37
Original price
$16,364.37
$16,364.37
-
$16,364.37
Current price
$16,364.37

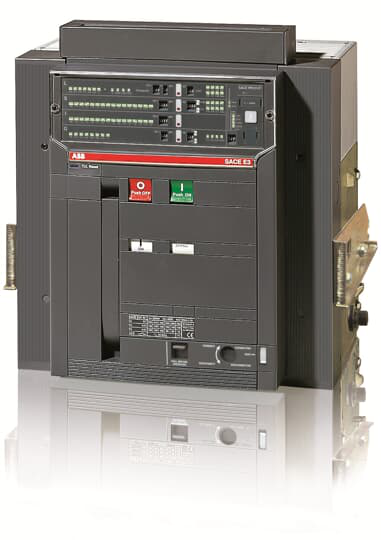

SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E3N 2500A THRE-POLE OVERCURRENT RELEASE PR121/P-LSIG R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A6076 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 432 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 64 kg |
| Item | Value |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour |
| Mechanical Durability | 20000 cycle60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | 350 W |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Current (In) | 2500 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2500 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA(230 V AC) 65 kA(380 V AC) 65 kA(400 V AC) 65 kA(415 V AC) 65 kA(440 V AC) 65 kA(500 V AC) 65 kA(660 V AC) 65 kA(690 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kAfor 3 s 65 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA(230 V AC) 65 kA(380 V AC) 65 kA(400 V AC) 65 kA(415 V AC) 65 kA(440 V AC) 65 kA(500 V AC) 65 kA(660 V AC) 65 kA(690 V AC) 65 kA |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Version | W |
| Item | Value |
|---|---|
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
