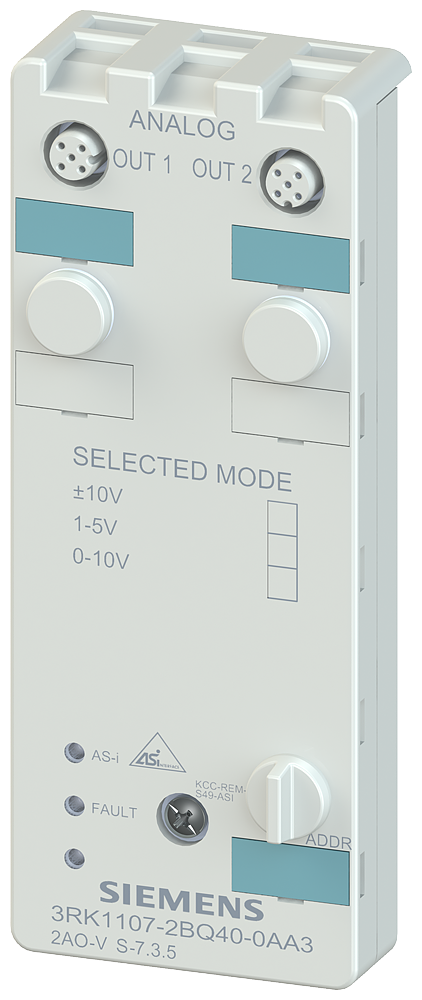

3RK1107-2BQ40-0AA3 - AS-I ANALOG OUTPUT MODULE, +/-10V, S7
by Siemens
Original price
$390.25
-
Original price
$390.25
Original price
$390.25
$390.25
-
$390.25
Current price
$390.25
TO BE ORDERED SEPARATELY MOUNTING PLATE 3RK19010CA00 ACTIVE CHANNELS 1 AND 2 FOR 2-WIRE ACTUATORS 2 X OUTP. (M12), +/- 10V ANALOG, 2AO, NUMERIC. FORMAT S7 AS-INTERFACE COMPACT MOD., IP67
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Depth | 29 mm |
| Width | 60 mm |
| Height | 152 mm |
| IO link master | false |
| Output, voltage | true |
| System accessory | true |
| Radio standard GSM | false |
| Radio standard GPRS | false |
| Radio standard UMTS | false |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 2 |
| Rack-assembly possible | false |
| Rail mounting possible | false |
| Front build in possible | false |
| Degree of protection (IP) | IP67 |
| Radio standard Bluetooth | false |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Output signal configurable | true |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | true |
| Supporting protocol for CAN | false |
| Supporting protocol for KNX | false |
| Supporting protocol for LON | false |
| Analogue outputs configurable | true |
| Number of HW-interfaces Wireless | 0 |
| Number of HW-interfaces parallel | 0 |
| Suitable for safety functions | false |
| Wall mounting/direct mounting | false |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for MODBUS | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFIBUS | false |
| Explosion safety category for dust | None |
| Resolution of the analogue inputs | 12 Bit |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFINET CBA | false |
| Type of electric connection | Screw connection |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for AS-Interface Safety at Work | false |
