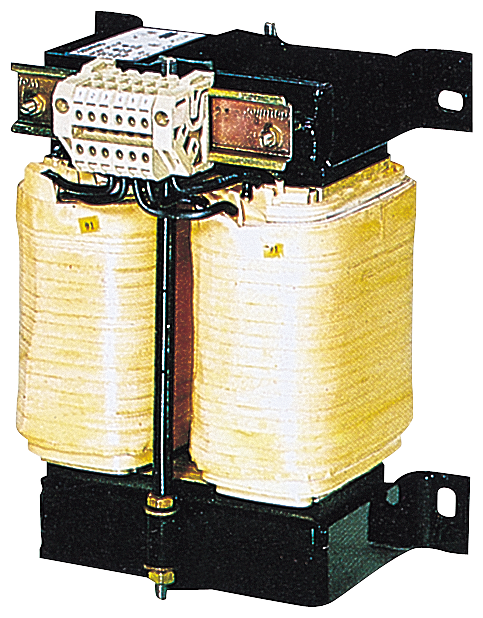

4AT3612-5AT10-0FD0 - TRANSFORMER SITAS, PHASES 1
by Siemens
Original price
$2,637.42
-
Original price
$2,637.42
Original price
$2,637.42
$2,637.42
-
$2,637.42
Current price
$2,637.42
TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):4 /18,5; UPRI(V):400+/-5%; USEC(V):230; ISEC(A):17,4; F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; TA/ISOKL:55 /H; IP54; TYPE OF TERMINALS:SCREW CONNECTION; INSTALLATION:SCREW; EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL CIRCUIT TRANSFORMER< >ISOLATION TRANSFORMER<
| Item | Value |
|---|---|
| Depth | 330 millimetre |
| Country of Origin | CZ |
| Width | 351 millimetre |
| Height | 395 millimetre |
| Protection type IP | IP54 |
| max. primary voltage 1 | 420 volt |
| max. primary voltage 2 | 400 volt |
| max. primary voltage 3 | 380 volt |
| min. primary voltage 1 | 420 volt |
| min. primary voltage 2 | 400 volt |
| min. primary voltage 3 | 380 volt |
| max. secondary voltage 1 | 230 volt |
| min. secondary voltage 1 | 230 volt |
| Rated performance | 4000 volt ampere |
| designed as safety transformer | false |
| suitable for series installation | false |
| designed as isolating transformer | false |
| designed as compensator transformer | false |
| suitable for circuit-board mounting | false |
| Insulation Material Class acc. to IEC 85 | H |
