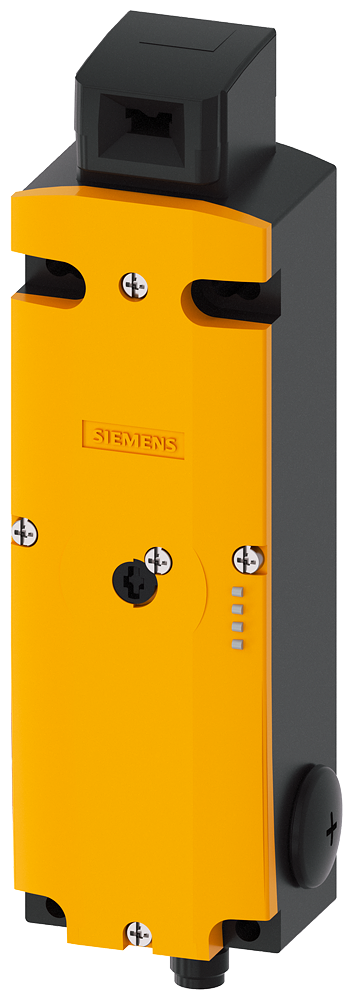

3SF1314-1SD11-1BA1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC, LED, ASI

3SF1314-1SD11-1BA1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC, LED, ASI

by Siemens
$542.18 - $542.18
$542.18
$542.18 - $542.18
$542.18

Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Metal enclosure, M12 connector ASIsafe integrated Channel 1=actuator 1 NC Channel 2=magnet 1 NC spring-locked Auxiliary release on front Magnet voltage 24 V DC/AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO The matching separate Actuator 3SE5000-0AV0 must be ordered separately



Specifications
Item Value
Country of Origin DE
Width sensor 54 mm
Length of sensor 185 mm
Material housing Metal
Height of sensor 43.5 mm
Coating housing Lacquered
Guard locking force 2600 N
With escape release false
With status indication true
Type of interface AS-Interface
Suitable for safety functions true
Degree of protection (IP) IP66/IP67
Number of safety auxiliary contacts 4
Explosion safety category for gas None
Explosion safety category for dust None
Type of switching contact Slow-action switch
Construction type housing Special construction
Ambient temperature during operating -25 °C
Type of guard locking Quiescent current principle
Type of electric connection Plug-in connection M12
Rated control supply voltage Us magnet drive at DC 24 V
Type of interface for safety communication AS-Interface Safety at Work
