1SDA060204R1 - T6S 630 TMA 630-6300 3p F F
by ABB
Original price
$1,281.89
-
Original price
$1,281.89
Original price
$1,281.89
$1,281.89
-
$1,281.89
Current price
$1,281.89

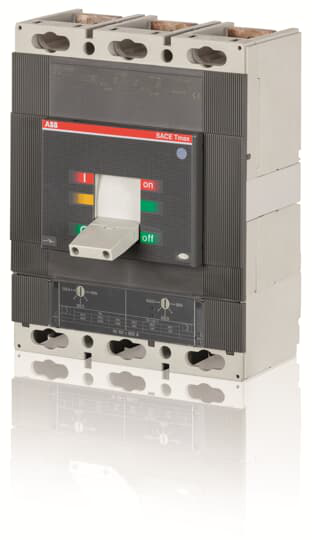

C.BREAKER TMAX T6S 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150...6300 A
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1058 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Item | Value |
|---|---|
| Electrical Durability | 7000 cycle60 cycles per hour |
| Mechanical Durability | 20000 cycle120 cycles per hour |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 30.6 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC750 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 45 kA(500 V AC) 35 kA(690 V AC) 16.5 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 7.6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 45 kA(500 V AC) 35 kA(690 V AC) 22 kA(250 V DC) 2 Poles in Series 50 kA(500 V DC) 2 Poles in Series 35 kA(750 V DC) 3 Poles in Series 20 kA |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T6 |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
| Test Voltage Max (Utest) | 3500 V |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
