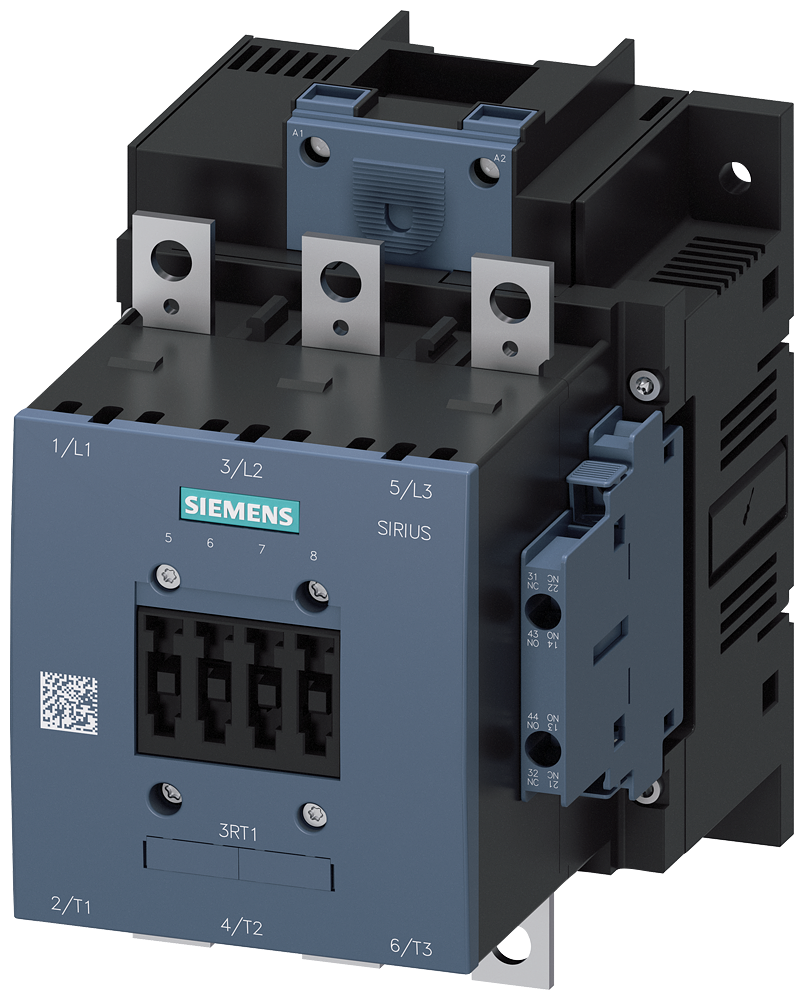

3RT1054-6AD36 - CONTACTOR S6 115A 42-48VUC 3P BAR

3RT1054-6AD36 - CONTACTOR S6 115A 42-48VUC 3P BAR

by Siemens
$414.26 - $414.26
$414.26
$414.26 - $414.26
$414.26

DRIVE: CONVENTIONAL RAIL CONNECTIONS 3 POLE, SIZE S6 AUXIL. CONTACTS 2NO+2NC AC/DC OPERATION UC 42-48V CONTACTOR, 55KW/400V/AC-3



Specifications
Item Value
Country of Origin DE
Modular version true
Voltage type for actuating AC/DC
Rated operation power NEMA 73.549875 kW
Rated control supply voltage Us at DC 42 V
Rated operation power at AC-3, 400 V 55 kW
Rated operation power at AC-4, 400 V 55 kW
Rated operation current Ie at AC-4, 400 V 97 A
Rated control supply voltage Us at AC 50HZ 42 V
Rated control supply voltage Us at AC 60HZ 42 V
Rated operation current Ie at AC-1, 400 V 160 A
Rated operation current Ie at AC-3, 400 V 115 A
Number of main contacts as normally open contact 3
Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Type of electrical connection of main circuit Rail connection
