1SDA067404R1 - XT1C 160 TMD 63-630 4p F F
by ABB
Original price
$202.04
-
Original price
$202.04
Original price
$202.04
$202.04
-
$202.04
Current price
$202.04

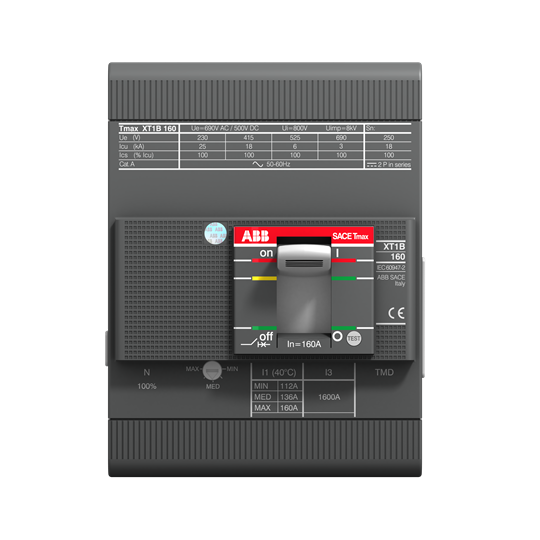

C.BREAKER TMAX XT1C 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 63-630 A
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 60.9 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2347 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1890 |
Item | Value |
---|---|
Environmental Information | 9AKK107991A8215 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | 8520a12f-9e1e-46df-b774-fae250ee3354 Italy (IT) |
Simplified SCIP | d3cc6a8d-c5e8-481b-9234-e4cabc534861 Germany (DE)ef41974b-77e1-4790-b38d-66a3f66fbc51 France (FR)ac6a6e14-c236-47ff-ba30-a32c13d1cc5f Netherlands (NL)112c10e9-8940-45e9-81ef-f79d1bc4ba4d Spain (ES)5e7afc5f-f0ce-496a-bad1-91adfe2bea6d Netherlands (NL)031f090b-eef4-46d1-99ba-9ce035985511 Greece (GR)0e67d5d8-b269-41b6-9c39-702ac065fb55 Bulgaria (BG)735fafb5-d306-4723-9697-47fda5646c2e Poland (PL)e13b044b-f8f6-4793-9840-186203a40a31 Norway (NO)581f3b40-cde8-443f-9472-2ca41c2ab76b Finland (FI)ebea3eb3-04c7-4ccc-967a-e92559a2c485 Netherlands (NL)6f7f0d36-14d0-49fa-bea3-7dc957d4c911 Germany (DE)4de797f8-9046-4639-bf87-8dff4e229c18 Denmark (DK)686b394e-fef5-4701-b980-6456383ec349 Germany (DE)a88aff47-6615-44e6-a5a4-0674750c11e9 Croatia (HR)1bd00f34-16fa-4191-88cc-5f1db92762bb Czech Republic (CZ)69652938-dc9b-4e8d-bfb3-01ce6d2fd4e0 Poland (PL)aeb36747-516a-4525-977c-a56918c9383f Netherlands (NL)b4b90187-2d4d-420d-b21d-3c2f2a9ea1b7 Netherlands (NL)70bb3e3f-1c7b-485e-8760-89966625ac9d Estonia (EE)c9436e5c-8107-4949-af60-9c69648ba3e2 Portugal (PT)54573f70-0d9a-446b-9a60-f0e7b45918c3 Germany (DE)ebea3eb3-04c7-4ccc-967a-e92559a2c485 Netherlands (NL)6f7f0d36-14d0-49fa-bea3-7dc957d4c911 Germany (DE)4de797f8-9046-4639-bf87-8dff4e229c18 Denmark (DK)686b394e-fef5-4701-b980-6456383ec349 Germany (DE)a88aff47-6615-44e6-a5a4-0674750c11e9 Croatia (HR)1bd00f34-16fa-4191-88cc-5f1db92762bb Czech Republic (CZ)69652938-dc9b-4e8d-bfb3-01ce6d2fd4e0 Poland (PL)39561525-de4b-444b-8fc8-5b37629d40f5 Sweden (SE)5e7afc5f-f0ce-496a-bad1-91adfe2bea6d Netherlands (NL)113d9373-1f2a-4c5a-9b3c-deea02f33626 Poland (PL)e1794a5a-4438-442d-915a-fe55e21836bd France (FR)f8df65b1-890c-433f-8ea2-b6bced2a629a Sweden (SE)54573f70-0d9a-446b-9a60-f0e7b45918c3 Germany (DE)d3cc6a8d-c5e8-481b-9234-e4cabc534861 Germany (DE)ef41974b-77e1-4790-b38d-66a3f66fbc51 France (FR)ac6a6e14-c236-47ff-ba30-a32c13d1cc5f Netherlands (NL)112c10e9-8940-45e9-81ef-f79d1bc4ba4d Spain (ES)735fafb5-d306-4723-9697-47fda5646c2e Poland (PL)e13b044b-f8f6-4793-9840-186203a40a31 Norway (NO)581f3b40-cde8-443f-9472-2ca41c2ab76b Finland (FI)aeb36747-516a-4525-977c-a56918c9383f Netherlands (NL)b4b90187-2d4d-420d-b21d-3c2f2a9ea1b7 Netherlands (NL)70bb3e3f-1c7b-485e-8760-89966625ac9d Estonia (EE)031f090b-eef4-46d1-99ba-9ce035985511 Greece (GR)c9436e5c-8107-4949-af60-9c69648ba3e2 Portugal (PT)0e67d5d8-b269-41b6-9c39-702ac065fb55 Bulgaria (BG)39561525-de4b-444b-8fc8-5b37629d40f5 Sweden (SE)113d9373-1f2a-4c5a-9b3c-deea02f33626 Poland (PL)e1794a5a-4438-442d-915a-fe55e21836bd France (FR)f8df65b1-890c-433f-8ea2-b6bced2a629a Sweden (SE) |
Item | Value |
---|---|
Order Code US and Canada | XT1CE4063AFF000XXX |
E-Number (Finland) | 3640519 |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 101.6 mm |
Product Net Height | 130 mm |
Product Net Depth / Length | 70 mm |
Product Net Weight | 1.4 kg |
Item | Value |
---|---|
Circuit Breaker Type to be Associated | Power Distribution |
Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
Current Type | AC/DC |
Electrical Durability | 120 cycles per hour8000 cycle |
Mechanical Durability | 240 cycles per hour25000 cycle |
Number of Poles | 4 |
Opening Time | CB with SOR 15 msCB with UVR 15 ms |
Order Multiple | 1 piece |
Power Loss | at Rated Operating Conditions per Pole 4.3 W |
Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 63 A |
Rated Frequency (f) | 50 / 60 Hz |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Instantaneous Short-Circuit Current Setting (Ii) | 630 A |
Rated Insulation Voltage (Ui) | 800 V |
Rated Operational Voltage | 690 V AC500 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 12.5 kA(500 V AC) 9 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 25 kA(500 V AC) 18 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA |
Rated Uninterrupted Current (Iu) | 160 A |
Recommended Screw Driver | Main Circuit M6 |
Release | TMD |
Release Type | TM |
Setting Range | 44.1...63 A |
Short-Circuit Performance Level | C |
Standards | IEC |
Sub-type | XT1 |
Terminal Connection Type | Front |
Terminal Type | Bolt |
Tightening Torque | 6 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001295R0080 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
