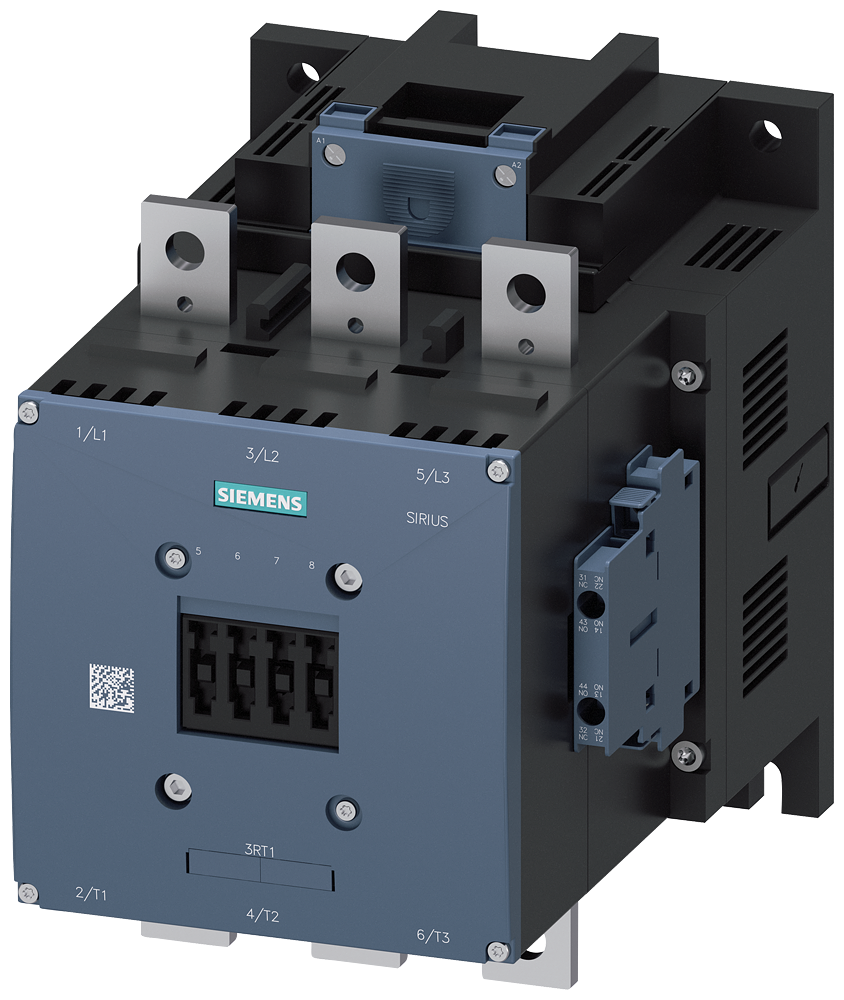

3RT1076-6AM36 - CONTACTOR S12 500A 200-220VUC 3P BAR

3RT1076-6AM36 - CONTACTOR S12 500A 200-220VUC 3P BAR

by Siemens
$2,023.06 - $2,023.06
$2,023.06
$2,023.06 - $2,023.06
$2,023.06

DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S12 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 200-220V UC CONTACTOR, 250KW/400V/AC-3



Specifications
Item Value
Modular version true
Country of Origin DE
Voltage type for actuating AC/DC
Rated operation power NEMA 294.1995 kW
Rated control supply voltage Us at DC 200 V
Rated operation power at AC-3, 400 V 250 kW
Rated operation power at AC-4, 400 V 250 kW
Rated operation current Ie at AC-1, 400 V 610 A
Rated operation current Ie at AC-3, 400 V 500 A
Rated operation current Ie at AC-4, 400 V 430 A
Rated control supply voltage Us at AC 50HZ 200 V
Rated control supply voltage Us at AC 60HZ 200 V
Number of main contacts as normally open contact 3
Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Type of electrical connection of main circuit Rail connection
