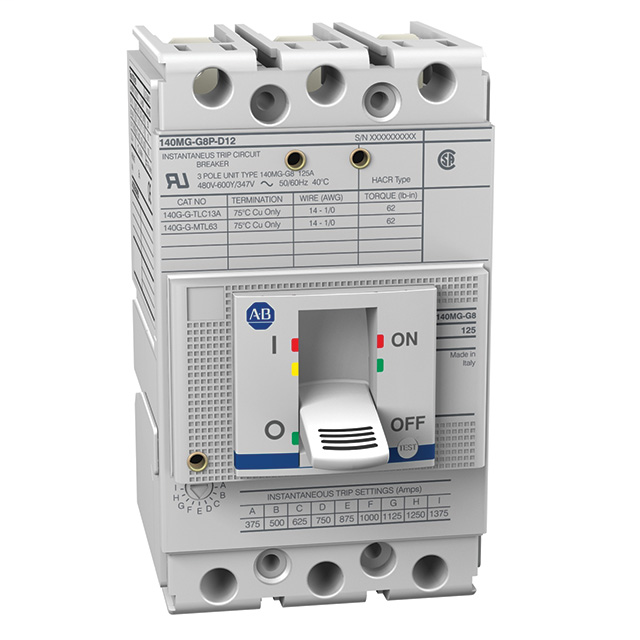

140MG-G8P-C30-SD - 140MG-G8P-C30-SD - 140MG Motor Circuit Protector & Motor Protection Circuit Breaker
Original price
$676.53
-
Original price
$676.53
Original price
$676.53
$676.53
-
$676.53
Current price
$676.53
140MG - Motor Circuit Protectors, G frame, 35..65 kA at 480V, MCP (magnetic only), Rated Current 30 A, Shunt Trip 110...127V AC/110...125V DC
| Item | Value |
|---|---|
| Bulletin Number | 140MG - Motor Circuit Protectors |
| Protection Type | MCP (magnetic only) |
| Frame Size | G frame |
| Rated Operational Current Ie(A) | 30 A |
| Item | Value |
|---|---|
| Assembly | Factory Assembled |
| Item | Value |
|---|---|
| Shunt Trip(SNT) and Undervoltage Release(UVT), Left Side Mounting | Shunt open release |
| Control Voltage | 110...120V AC/DC |
3-Dimensional STEP model (STP)
Link to Literature Library for Tech Data
Link to Literature Library for Installation Instructions
2-Dimensional Drawing (PDF)
2-Dimensional Drawing (DWG/DXF)
Link to Literature Library for Selectivity Guide
